Neurostimulator Electronics: Tiny Pulses, Big Nerves

1) Cold Open: What Neurostimulators Actually Do

A neurostimulator delivers carefully timed, charge-balanced electrical pulses to neural tissue via implanted electrodes, while listening for tiny signals that indicate how the nervous system is responding. The electronics must be exquisite: low-noise sensing AFEs, deterministic timing, output stages that behave like well-trained current sources, and power designs that treat microamps like gold. Whether we’re talking spinal cord stimulation (SCS), deep brain stimulation (DBS), vagus nerve stimulation (VNS), or peripheral nerve stimulation (PNS), the engineering vibe is the same—quiet, precise, and relentlessly predictable.

Imagine The Mandalorian: the stimulator is the silent operator who gets the job done with minimum chatter, maximum reliability. Our plot elements: electrodes that touch tissue, feedthroughs that keep the case hermetic, AFEs that can hear microvolts through the noise, a timing kernel that never blinks, and a pulse generator that paints charge with the care of a museum conservator.

2) Design Targets & System Requirements

• Longevity: Years of operation. Average current is king; stimulation duty cycles and telemetry must be frugal.
• Safety: Charge balance, current limits, electrode protection, and multiple fault monitors. No single-point catastrophic failure on the output path.
• Sensing fidelity: μV-level neural signals (ENG/LFP/ECAP) amid motion artifacts, EM fields, and the stimulator’s own pulses.
• Predictability: Timing windows are deterministic; interrupts are bounded; watchdogs are watchful.
• Compatibility: ESD/defib robustness; MRI-conditional behavior if supported by the intended system.
• Traceability: Logs for events, thresholds, electrode impedance, delivered energy, battery metrics, errors.
• Usability: External programmer and patient controller with clear feedback; recharge workflow that fits real life.

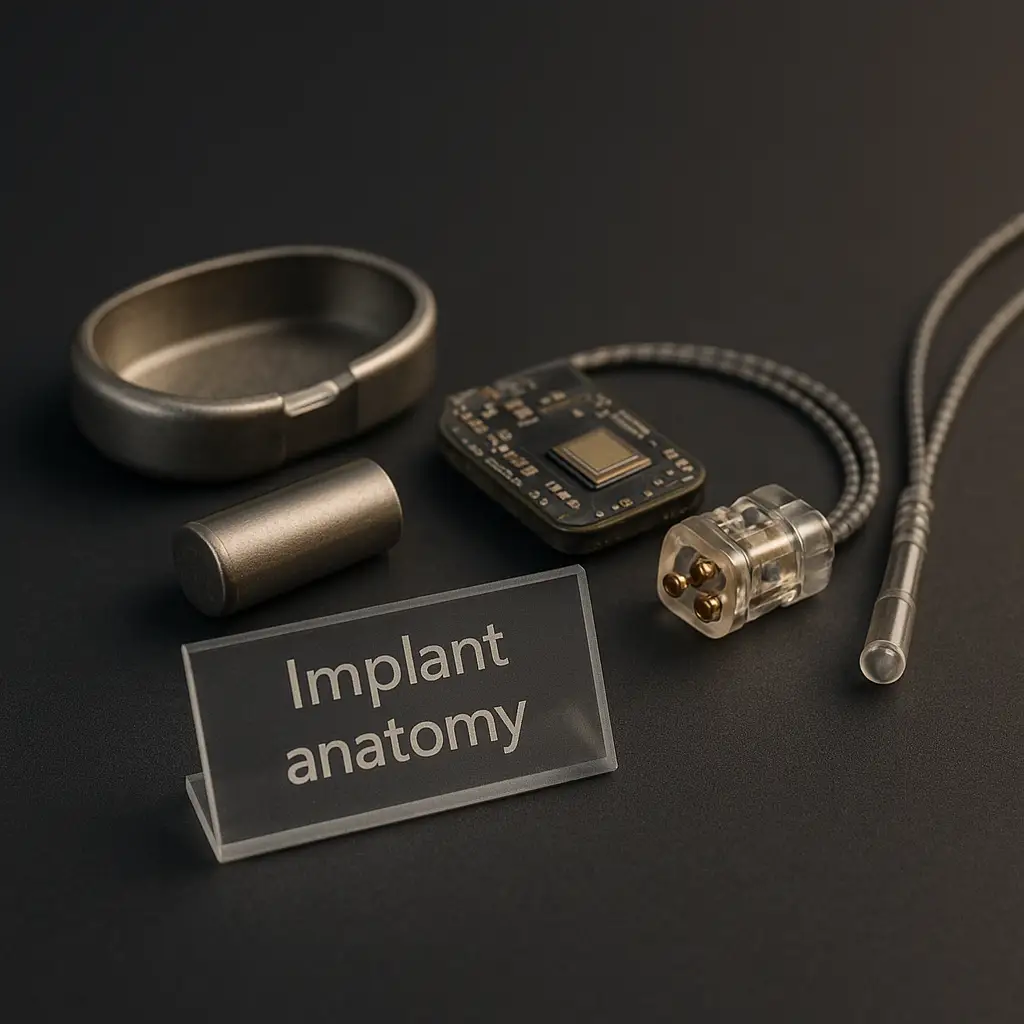

3) End-to-End Architecture (Block by Block)

At a high level, a neurostimulator is a closed-loop timing system with three personalities:

1. Listener — AFEs strain neural whispers into features the timing kernel can understand.
2. Timekeeper — hardware-timed counters enforce windows and intervals like a metronome in a lab coat.
3. Painter — the output stage “paints” charge onto tissue with uncanny consistency.

Key blocks:

• Electrodes & Leads: Multi-contact arrays, often 8–32 contacts; unipolar, bipolar, or multipolar patterns.
• Hermetic Feedthroughs: Filters and shields lead signals through the case without letting moisture in or RF out.
• AFEs: Instrumentation amps with programmable gain; band-pass filters; blanking switches for artifact immunity.
• ADC & Comparators: Low-rate ADCs for morphology; ultra-low-power comparators for thresholds and events.
• Timing Core: MCU/ASIC with timers, watchdogs, and hard deadlines. Interrupt latencies are bounded and boring.
• Output Stage: Current sources/sinks, a switch matrix for contact selection, compliance monitoring, charge balance.
• Power & PMIC: Primary or rechargeable cell, nanoamp supervisors, LDOs/DC-DCs, recharging coil and rectifier if applicable.
• Telemetry: Inductive/NFC for pairing and power; MICS band (402–405 MHz) or similar for short-range data.
• Memory & Logs: FRAM/EEPROM; wear leveling; event timelines; delivered-therapy counters.

4) Sensing: From Microvolts to Meaning

Mission: Discern neural events in the presence of your own pulses and the environment’s shenanigans. That means thoughtful electrodes, disciplined AFEs, and timing windows that know when to look away.

4.1 Electrode Configurations

• Bipolar: Adjacent contacts; small loop area; lower pickup of far-field noise.
• Monopolar: Contact vs. case; bigger signals, bigger loop, more environmental coupling.
• Multipolar: Creative montages for targeting and artifact management.

4.2 AFE Architecture

• Instrumentation amplifier with high CMRR and programmable gain (no one-size-fits-all tissue).
• Band-pass filter tuned to the physiology (LFP or ECAP bands) with optional notch/adaptive rejection.
• Blanking switch that mutes the AFE during and just after stimulation to avoid saturating on your own artwork.
• Comparator path for microamp budget event detection; ADC path for morphology and diagnostics.

4.3 Timing Windows

• Blanking: The Stranger Things “do not disturb” sign—ignore everything during the pulse and immediate aftermath.
• Refractory: Events may be visible but are not counted for timing decisions.
• Noise reversion: If noise dominates, fall back to safe open-loop parameters and log the chaos.

4.4 Impedance & ECAPs

• Impedance checks catch lead fractures or tissue changes; track trends over time.
• ECAP sensing (evoked compound action potentials) gives feedback on whether pulses are doing useful work.

5) Output: Charge-Balanced Pulses & Safety Nets

Output is where electronics meet neurons. The objective is a current-controlled, charge-balanced waveform with tight limits, consistent delivery, and graceful error handling.

5.1 Current Source, Not Just Voltage

• Use precision current DACs or mirrored sources; monitor compliance voltage to ensure delivery across electrode impedances.
• Contact selection via a switch matrix; support cathodic/anodic phases and active/passive recharge.

5.2 Charge Balance

• Biphasic pulses or active recharge maintain near-zero net charge to protect tissue and electrodes.
• Track delivered charge per phase; enforce bounds with hardware comparators.

5.3 Programmables

• Amplitude (μA–mA), pulse width (μs–ms), frequency (Hz–kHz), duty cycle, burst patterns, contact montage.
• Mode sets stored with checksums and audit trails.

5.4 Protection

• Short/open detect: Stop, log, retry under safe rules; flag for clinical follow-up.
• Thermal & power limits: Cap average charge/energy; monitor die temperature if available.

6) Power: Batteries, Recharging & Budget Kung Fu

Energy is the plot armor. Some systems use primary lithium chemistries (e.g., Li/CF_x blends) for long life without recharging; others adopt rechargeable Li-ion with an inductive link so patients top up periodically.

6.1 Primary vs. Rechargeable

• Primary: Predictable, no recharge routines; capacity is finite—budget every microamp.
• Rechargeable: Smaller pack, regular recharging via inductive coil; design for efficient coupling, thermal comfort, and simple UX.

6.2 PMIC Playbook

• Nanoamp supervisors for brownout and watchdogs; low-IQ LDOs for AFEs; DC-DC if it pays its own overhead.
• Separate “quiet” analog rails from “loud” digital/driver rails; star returns with attention to case connections.

6.3 Recharge Path

• Inductive RX coil → rectifier → charge IC → cell; manage temperature with derates and user feedback.
• Schedule recharges to avoid interfering with sensing or therapy; log cycles for SOH tracking.

7) Compute: MCU/ASIC Timing, Firmware, and Logs

Most implants lean on a custom or semi-custom ASIC for analog + timing and a tiny MCU for policy, telemetry, and logs. Determinism beats cleverness.

7.1 Timing Kernel

• Hardware timers for stimulation windows, blanking, refractory, bursts, duty cycles.
• ISR paths are short, deterministic, and unit-tested; watchdogs supervise the supervisors.

7.2 Memory & Logging

• FRAM/EEPROM for configs, counters, delivered therapy and ECAP trends; wear leveling and CRCs.
• Timebases that persist across resets; audit trails for parameter changes.

7.3 Safe States & Updates

• Safe fallback if anomalies appear (noise storms, suspected lead faults).
• Updates only via authorized clinical tools; dual-image or transactional apply with robust rollbacks.

8) Telemetry & Security: Inductive, MICS & Friends

Programmers talk to implants via inductive links and/or short-range MICS band radios designed for implants. Every packet should be polite, authenticated, and logged.

8.1 Physical Layers

• Inductive/NFC: Close-range; great for pairing, recharging alignment aids, and safe programming.
• MICS band: Narrowband FSK with tiny duty cycles; suited to implants and clinical environments.

8.2 Security Basics

• Mutual auth, session keys, replay protection, rate limiting.
• Clinical operations require proximity and multi-step confirmation; everything leaves a timestamped footprint.

9) Electrodes, Leads & Hermetic Magic

Electrodes make contact with tissue; leads carry signals; the case/header keeps everything dry, biocompatible, and RF-disciplined.

9.1 Materials & Geometry

• Platinum-iridium, MP35N or similar; surface treatments to tailor impedance and charge injection capacity.
• Paddle or cylindrical arrays for SCS; segmented rings for DBS; helical designs for cuff electrodes.

9.2 Hermetic Feedthroughs & Header

• Ceramic/metal seals; capacitor-style feedthroughs filter RF at the entry point.
• Connector systems keyed for polarity and sealing; strain relief for motion.

9.3 Impedance & Tissue Interface

• Measure impedance during implant and follow-ups; trend over time to catch drift.
• Respect charge density limits for materials and geometry.

10) EMC, MRI & ESD: The World vs. Your Tiny Circuit

• Shielding & filtering: Titanium case, feedthrough capacitors, careful stackups.
• Input clamps: Survive external shocks and ESD; recover AFEs quickly and predictably.
• MRI-conditional modes: If in scope, behaviors and labeling must be system-level and verified end to end.

11) Algorithms: Modes, ECAPs, and Closed Loops

Think “Andor” not “Avengers”: minimal drama, maximum planning. The control logic aims for natural yet reliable stimulation behavior.

11.1 Modes & Patterns

• Continuous, burst, cycling, or demand-based schemes; multipolar arrangements for steering.
• Scheduler enforces duty cycles and rest periods to respect thermal and charge limits.

11.2 Capture & Thresholding

• Use ECAPs or other markers to keep amplitude just above threshold; save energy where possible.

11.3 Closed-Loop Ideas

• Dynamic adaptation based on sensed feedback; safe bounds and human-readable logs.

12) Verification & Validation: Proof Beats Vibes

• Output: Current accuracy, pulse width, charge balance, compliance limits, thermal behavior.
• Sensing: Noise floor, saturation recovery, blanking effectiveness, ECAP detect sensitivity/specificity.
• Power: Battery modeling, recharge efficiency, end-of-life behavior and logs.
• EMC/ESD: Immunity/emissions, defib-like shocks, latch-up immunity.
• Software: Unit tests for state machines, fault injection, long-haul endurance with randomized workloads.
• Usability: External programmer and patient controller tasks measured in seconds, not manuals.

13) Sample BOM (By Function)

• Leads/Protection: Feedthrough capacitors, TVS/ESD diodes, current-limiting networks, biocompatible connector hardware.
• Sensing AFEs: Instrumentation amps, low-leakage op-amps, PGA blocks, precision references, low-power comparators, blanking switches.
• Timing/Compute: Ultra-low-power MCU or ASIC core, watchdog, RTC/timers, FRAM/EEPROM.
• Output: Precision current DACs/sources, switch matrix ICs, compliance monitor, charge-balance network, precision resistors.
• Power: Primary/rechargeable cell, nanoamp supervisors, low-IQ LDOs, DC-DC (if justified), inductive RX coil and rectifier.
• Telemetry: Inductive/NFC coil, MICS-band RFIC, matching network, authenticated command parser.
• Mechanicals: Titanium case, ceramic header, hermetic feedthroughs, medical-grade adhesives, gaskets.

14) Deployment & Field Notes

• Programmer pairing: Short, supervised sessions; clear UI; saved profiles with checksums.
• Recharge UX: Alignment aids (magnets/graphics), gentle haptics, audible cues, thermal limits.
• Daily life: Case edges and coatings that coexist with movement; strain relief on leads.
• Follow-ups: Impedance and trend logs; battery SOH; configuration diffs since last visit.

Think Barbie production design: everything looks simple because the crew did the hard work behind the scenes.

15) Failure Modes & Serviceability

• Lead issues: Rising impedance, intermittent contact—detect, derate, log, and flag.
• Output anomalies: Compliance exceeded or short detected—halt, recover, and record.
• Noise storms: Prolonged oversensing—enter safe mode with conservative parameters.
• Battery EOL: Graceful feature reduction with therapy integrity prioritized; transparent indicators in logs.

At 2 AM, the device should make the boring choice and leave a diary entry about it.

16) Glossary (Rapid Fire)

• AFE: Analog Front End for tiny neural signals.
• Blanking: A short window where the AFE intentionally ignores input around a pulse.
• Compliance voltage: Headroom to keep a current source honest across impedances.
• ECAP: Evoked Compound Action Potential—evidence the pulse did something interesting.
• FRAM: Non-volatile memory that writes fast and often without wearing out quickly.
• MICS band: 402–405 MHz radio milieu designed for implants.
• Multipolar: Using multiple contacts to steer current or shape fields.

One-line takeaway: Neurostimulator electronics are the ultimate exercise in quiet precision: whisper-level sensing, museum-grade charge painting, ruthless power budgeting, and logs that read like a detective novel.
