X-ray & CT Electronics: From Kilovolts to Reconstruction

1) Cold Open: What X-ray & CT Electronics Actually Do

X-ray imaging is controlled chaos: accelerate electrons into a target, make bremsstrahlung photons, shape the beam, then measure what survives the patient. CT does this repeatedly from many angles and uses math to reconstruct cross-sectional images. The electronics must span both ends of the universe—high-voltage power for the tube and low-noise analog for the detector—wired together with timing so strict it could run a space launch.

In a cinematic analogy, X-ray is the dramatic single take; CT is the montage. Your cast: a high-voltage generator that can step from 60 kV to 140 kV without drama, a tube with a filament that lives its best (controlled) life, detectors that turn photons into current, a DAS (data acquisition system) that respects every electron, slip rings that gossip data across a spinning world, motion controllers that hit marks, and DSP that turns counts into pictures that actually mean something.

2) Design Targets & System Requirements (Reality Check)

• Tube control: kV ripple, mA accuracy, fast exposure gating; filament preheat and closed-loop emissions.
• Detector SNR: low dark current, stable gain/offset, uniformity; linearity across dose rates for X-ray fluoroscopy and CT helical scans.
• Timing determinism: μs-grade exposure sync with DAS sampling; encoder-accurate CT angle stamping.
• Data firehose: multi-kchannel DAS at MHz sampling for CT; low-latency streaming through slip rings/fiber.
• Safety budget: radiation interlocks, door switches, emergency stop, tube thermal models, gantry balance checks.
• EMC/EMI discipline: big PAs and quiet AFEs as roommates—filters, shields, and grounding that keep the peace.
• Traceability: logs for dose, exposure, tube heat, detector temperatures, calibration constants, and every firmware hash.

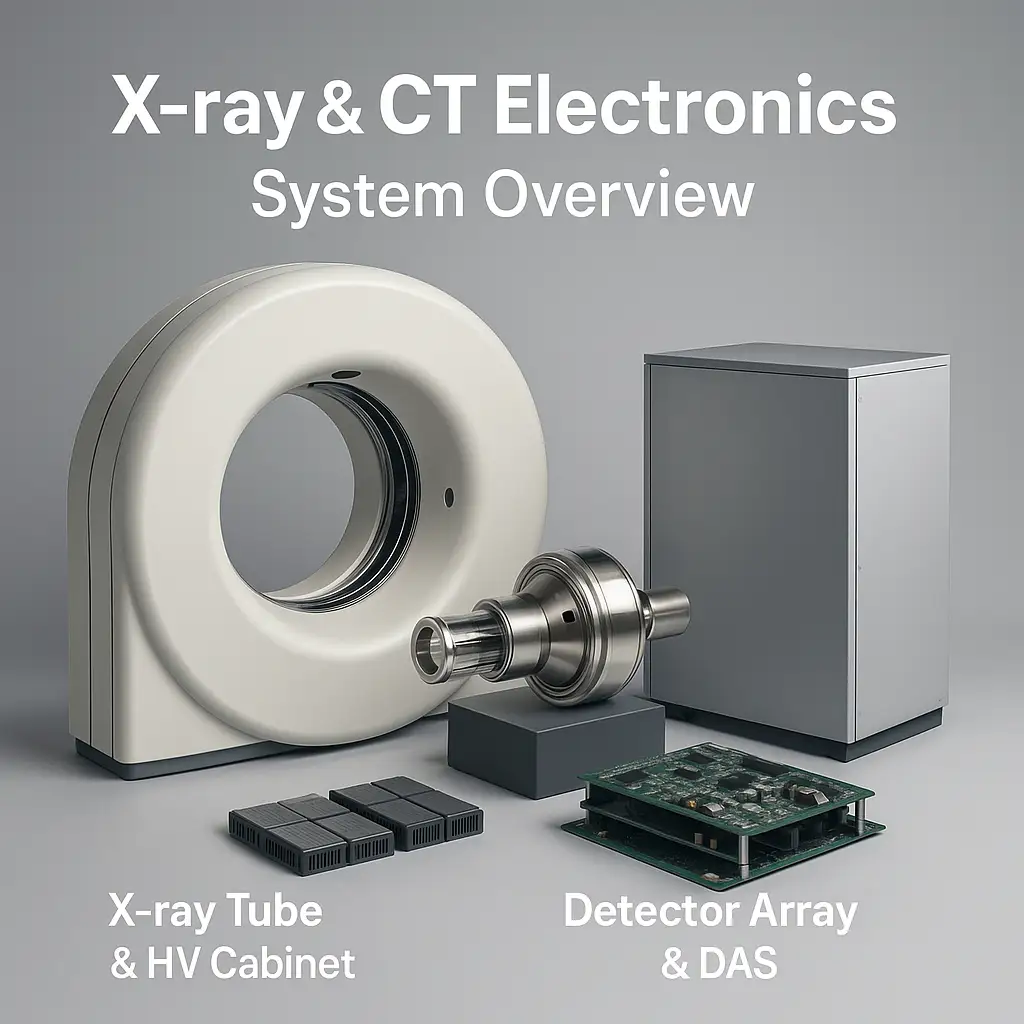

3) System Architecture: Tube, Detector, DAS & Brains

At a high level, an X-ray system is a beam source plus a sensor; a CT system is a synchronized ballet of source-sensor pairs spinning in circles with a reconstruction brain taking notes.

1. Source — X-ray tube, filament supply, high-voltage generator, ripple filtering, exposure gates.
2. Beam shaping — inherent + added filtration, bowtie filters, primary collimation, automatic exposure control (AEC).
3. Detector — scintillator + photodiode arrays (or CZT) with anti-scatter grids; per-channel temperature sensing.
4. DAS — low-noise TIA/CSA, programmable gains, multiplexing, precision ADCs, offset/gain correction, linearization.
5. Transport — slip rings/fiber for CT; shielded LVDS or fiber for static X-ray.
6. Compute — timing kernel, exposure control, dose tracking, and big iron (GPU/CPU) for reconstruction in CT.
7. Motion — gantry rotation, table translation, collimator blades, shuttering, and alignment cues.
8. Safety — interlocks, watchdogs, dose audit, tube thermal solver, and emergency decels.

4) X-ray Tube & High-Voltage Generator: Kilovolt Choreography

Nothing says “respect me” like 120 kV at tens to hundreds of mA. The X-ray tube and its HV generator are the heart of both X-ray and CT.

4.1 Filament, Emission & kV Control

• Filament supply with closed-loop current; preheat ramps; emission regulation to hold mA steady across kV steps.
• kV generator—DC for radiography; high-frequency inverter + rectification for compactness; ripple kept small to avoid beam energy wobble.
• mA feedback via cathode current sense or anode current proxies; protect against arcing and overloads.

4.2 Exposure Modes

• Radiography: short pulses; AEC closes the shutter when the detector says “we’re good.”
• Fluoroscopy: lower mA, continuous or pulsed; flicker-safe timing so images feel live.
• CT: continuous, tightly regulated mA over rotations; rapid kV switching in advanced protocols.

4.3 Protection & Thermal

• Tube heat capacity model; cool-down enforcement; anode speed monitors; vacuum arc detection with fast crowbars.
• Door/cover interlocks; hands-off voltage discharge paths; bleeders that work even on bad days.

5) Detectors for X-ray & CT: Scintillators, Photodiodes & CZT

Detectors turn X-ray photons into measurable signals. In radiography/fluoro panels, a scintillator (e.g., CsI) converts X-ray to visible light read by TFT arrays; in CT, pixelated scintillators couple to photodiode tiles, or direct-conversion semiconductors (CZT) convert X-ray straight to electrons.

5.1 Scintillator + Photodiode

• High light yield; collimated pixels reduce cross-talk; temperature tracking because photodiodes drift with heat.
• Afterglow and lag: manage with timing and signal models; CT prefers fast decay.

5.2 Direct Conversion (CZT/CdTe)

• Energy-discriminating detectors enable spectral CT; per-pixel shaping amplifiers get busy; bias supplies must be quiet and stable.

5.3 Anti-Scatter & Mechanics

• Anti-scatter grids reduce fog; mechanical alignment keeps pixel geometry honest; ambient light sealing is mandatory.

6) DAS & AFEs: From Femtoamps to Honest Bits

The DAS is the whisper-to-words pipeline. X-ray panels and CT arrays feed current into TIAs/CSAs, then precision ADCs, with enough dynamic range to span pediatric fluoro to bariatric CT without drama.

6.1 Analog Front Ends

• TIA/CSA: low input noise, programmable gain; reset/auto-zero to manage offsets; per-channel calibration constants.
• Shaping: RC shaping or digital filters; balance bandwidth and noise to the detector physics.

6.2 ADC & Linearization

• 18–20-bit ΔΣ or high-speed SAR for CT; coherent sampling with exposure; reference stability and drift specs that make metrologists smile.
• Dark/offset subtraction; gain normalization; bad-pixel maps with interpolation; temperature compensation.

6.3 Clocking & Sync

• Jitter budgets spelled out; phase alignment across thousands of channels; exposure tags and gantry angle stamps for CT.

7) CT Gantry, Slip Rings & Telemetry: Talk While You Spin

CT adds a carnival ride: rotate the tube and detector around the patient at a few revolutions per second while streaming data and power. Slip rings (or contactless power/data) bridge rotating and stationary worlds.

7.1 Power Across the Ring

• High-power channels for tube/HV on the rotor; regulated rails for DAS and detector bias; redundant grounds and surge handling.

7.2 Data Across the Ring

• Gigabit-class serial links; forward error correction; latency-bounded protocols for real-time recon; optical where feasible.

7.3 Encoding the Spin

• High-resolution encoders for angle; sync markers per projection; health telemetry for brushes or couplers.

8) Timing, Gating & Dose Control: The Metronome

X-ray and CT timing is “ticks, not vibes.” Exposure gates align with ADC windows; AEC and tube thermal models guide mA; in CT, angle-synchronized projections are law.

• Master clock for ADC/DSP; exposure trigger with deterministic latency; pre-exposure and post-exposure guard bands.
• AEC using scout data or real-time detector rate; adaptive kV/mA schemes for dose efficiency.
• Gating to physiology (cardiac/respiratory) when required; timestamped for reconstruction logic.

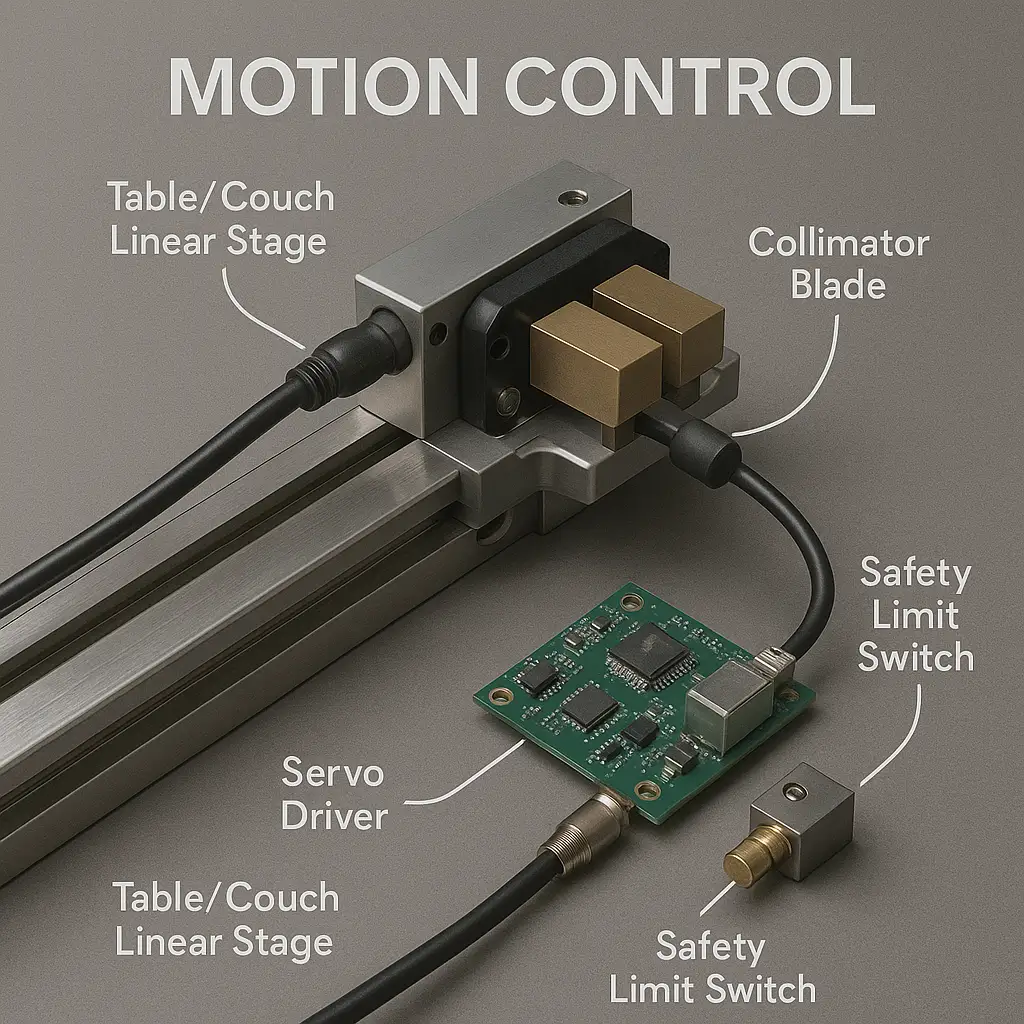

9) Motion Control: Tables, Collimators & Couch Ballet

Motion systems in X-ray and CT keep people and photons in the right places. Couch moves, gantry tilts, collimators shape beams, shutters behave. All must be smooth, precise, and quiet—electrically and acoustically.

• Drives: stepper/servo with encoders; jerk-limited profiles to avoid blur in CT helical scans.
• Collimators: blade position feedback; homing sensors; fail-safe shutters for power loss.
• Alignment: lasers and cameras for isocenter; calibration fixtures for geometry.

10) DSP & Reconstruction: From Projections to Pictures

After X-ray counts become numbers, DSP turns them into meaning. For CT, it’s a whole saga: corrections → log transform → geometry → filtered back-projection or iterative methods → denoising → display. Modern stacks add spectral decomposition and AI-aided priors—with validation guardrails.

10.1 Corrections

• Offset/gain normalization; bad-pixel maps; scatter correction; beam hardening compensation via calibration polynomials.

10.2 CT Geometry & Filtering

• Fan-beam and cone-beam geometries; ramp filters (Ram-Lak, Shepp-Logan) or apodization; exact/approximate cone-beam algorithms.

10.3 Iterative & Spectral

• Iterative recon with system models; regularization for noise/edges; dual-energy/spectral CT material basis images.

11) Power, Thermal & Grounding: Watts Meet μV

X-ray and CT cabinets host noisy power (HV inverters, motor drives) next to sensitive AFEs. Partition like you’re seating feuding royals at a wedding.

• Rails: clean analog LDOs for DAS; efficient bucks for compute; robust supplies for HV drivers and motors; ride-through for brownouts.
• Cooling: heat pipes and liquid loops for tube/HV; airflow for compute; don’t let fan harmonics sing into your sampling band.
• Grounding: star points; chassis bonds; 360° shield terminations; no pigtails on critical shields.

12) Radiation Safety & Interlocks: Make Danger Hard

Ionizing radiation and spinning hardware are not the time to “wing it.” X-ray and CT safety is hard-wired and boring by design.

• Interlocks: doors, covers, emergency stops; redundant chains; exposure inhibited if any are open.
• Dose monitoring: mAs counters, AEC logs, DAP if applicable; alarms when limits approached.
• Mechanical safety: collision sensors on couch; torque/current limits on drives; emergency decel for CT gantry.

13) EMC/EMI & Shielding: Keep the Quiet Quiet

EMC is architecture first, ferrites second. X-ray HV inverters and CT slip ring comms can be friendly neighbors—if you draw the map.

• Filtered penetrations; shield partitions around HV and motors; cable trays and harness design that avoid giant loop areas.
• Common-mode chokes on long runs; RC snubbers for drives; differential everywhere feasible; fiber for big jumps.
• Test while transmitting and moving—idle passes are lies.

14) Calibration, QA & Drift: Receipts or It Didn’t Happen

Calibration in X-ray and CT is a routine, not a plot twist. Offset/gain maps, geometric alignment, HU linearity, MTF/NNPS, and tube heat tracking get scheduled like rent.

• Offset/Gain: dark frames, flood fields; per-temperature bins; store CRC-tagged constants.
• Geometry: phantom-based checks for isocenter, bowtie alignment, detector tilt; log deltas.
• HU/Linearity (CT): water/air checks; multi-material phantoms; beam hardening verification.
• MTF/NNPS: resolution/noise performance tracked; alarms on drift.

15) Manufacturing & Traceability: From Line to Ward

Ship only what proves itself. X-ray panels, CT detectors, DAS boards, HV modules, slip rings, and motion subsystems get fixtures that simulate the real world.

• HV soak and step tests with synthetic loads; arcing screens; controlled discharge scripts.
• DAS noise/linearity fixtures; temperature sweeps; bad-pixel detection and map programming.
• Slip ring life tests; BER monitors under rotation; encoder accuracy validation.
• Full-stack dry runs with phantoms; logs uploaded to traceability servers; serials married to firmware hashes.

16) Sample BOM (By Function) for X-ray & CT

HV & Tube

• HF inverter modules, HV transformers/rectifiers, kV/mA sensors, filament drivers, crowbar/protection, bleeders, shields.

Detectors & DAS

• Scintillator tiles, photodiode arrays or CZT modules, TIAs/CSAs, precision references, ΔΣ/SAR ADCs, temp sensors, FPGA packetizers.

CT Transport

• Slip ring power segments, high-speed data couplers, encoders, fiber transceivers, surge arrestors.

Compute & Recon

• SoC/FPGA timing core, GPU/CPU blades, ECC RAM, NVMe, secure elements, service ports.

Motion & Mechanicals

• Servo/stepper drives, encoders, collimator actuators, couch rails, safety sensors, brakes.

Power/EMC

• Medical AC/DC, PMICs, LDOs/bucks, filters, chokes, ferrites, snubbers, fans/heat exchangers, shield gaskets.

17) Glossary (Rapid Fire)

• DAS — Data Acquisition System for detectors.
• AEC — Automatic Exposure Control; ends radiography exposures politely.
• HU — Hounsfield Unit; CT’s favorite unit of friendship.
• MTF/NNPS — Resolution/noise metrics; bring receipts.
• Bowtie — Shaping filter that evens dose/detector response.
• CZT — Cadmium Zinc Telluride; direct conversion detector tech.
• Crowbar — Fast HV shutdown when sparks misbehave.

One-line takeaway: Great X-ray & CT electronics are kilovolt manners, detector empathy, deterministic timing, explainable math, and logs that make physicists smile.
