ADC Codes & Polarity — Straight vs Offset-Binary vs Two’s-Complement

Code format equals signal polarity and sets what your MCU or DSP expects. Mapping it wrong leads to zero shifts or inverted signs. This page shows when to use each format, how to convert safely, and how to verify the setup with a two-minute ramp or sine test.

Submit your BOM (48h) IC selection guide

Within 48 hours you’ll receive three safe options with indicative lead time, price ranges, and short notes on front-end/Vref and polarity risks.

Unipolar vs Bipolar Basics

Signal polarity sets the right code format. Unipolar (0…Vref) maps cleanly with straight binary; bipolar (−FS…+FS) is best handled as two’s-complement, while offset-binary often bridges legacy interfaces. Use LSB = FS / 2ⁿ (where unipolar FS=Vref; bipolar FS=2·Vref), and treat +FS ≈ FS − 1 LSB.

ADC input range, zero location, typical code format, and common uses
Range	Zero location	Typical format	Common use
0…Vref (FS = Vref)	Left end (0 V)	Straight binary	Light/pressure sensors, current loop, single-ended signals
−Vref…+Vref (FS = 2·Vref)	Mid-scale	Two’s-complement (offset-binary for legacy/bridge)	Bridge sensors with INAs, audio/vibration, signed DSP

Note: LSB = FS / 2ⁿ. Endpoint conventions vary — +FS ≈ FS − 1 LSB.

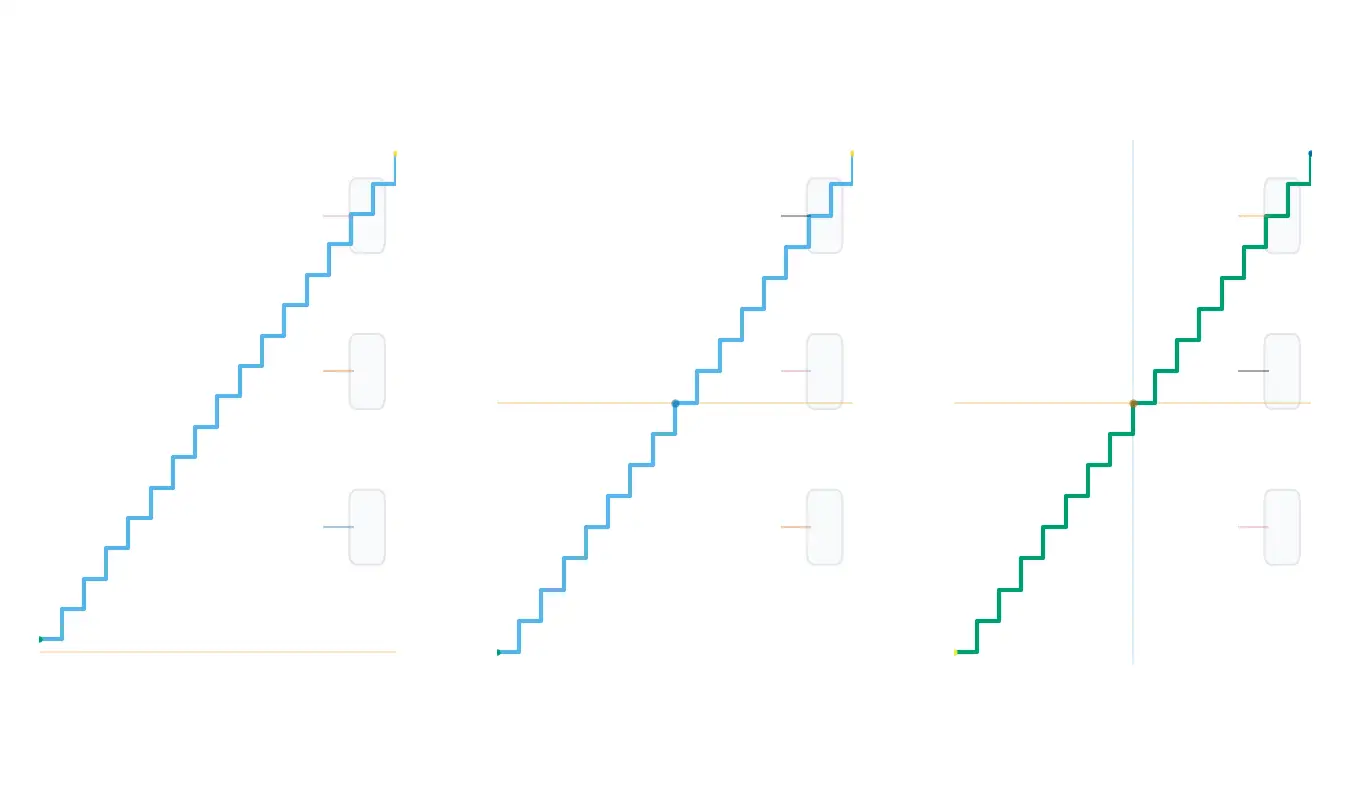

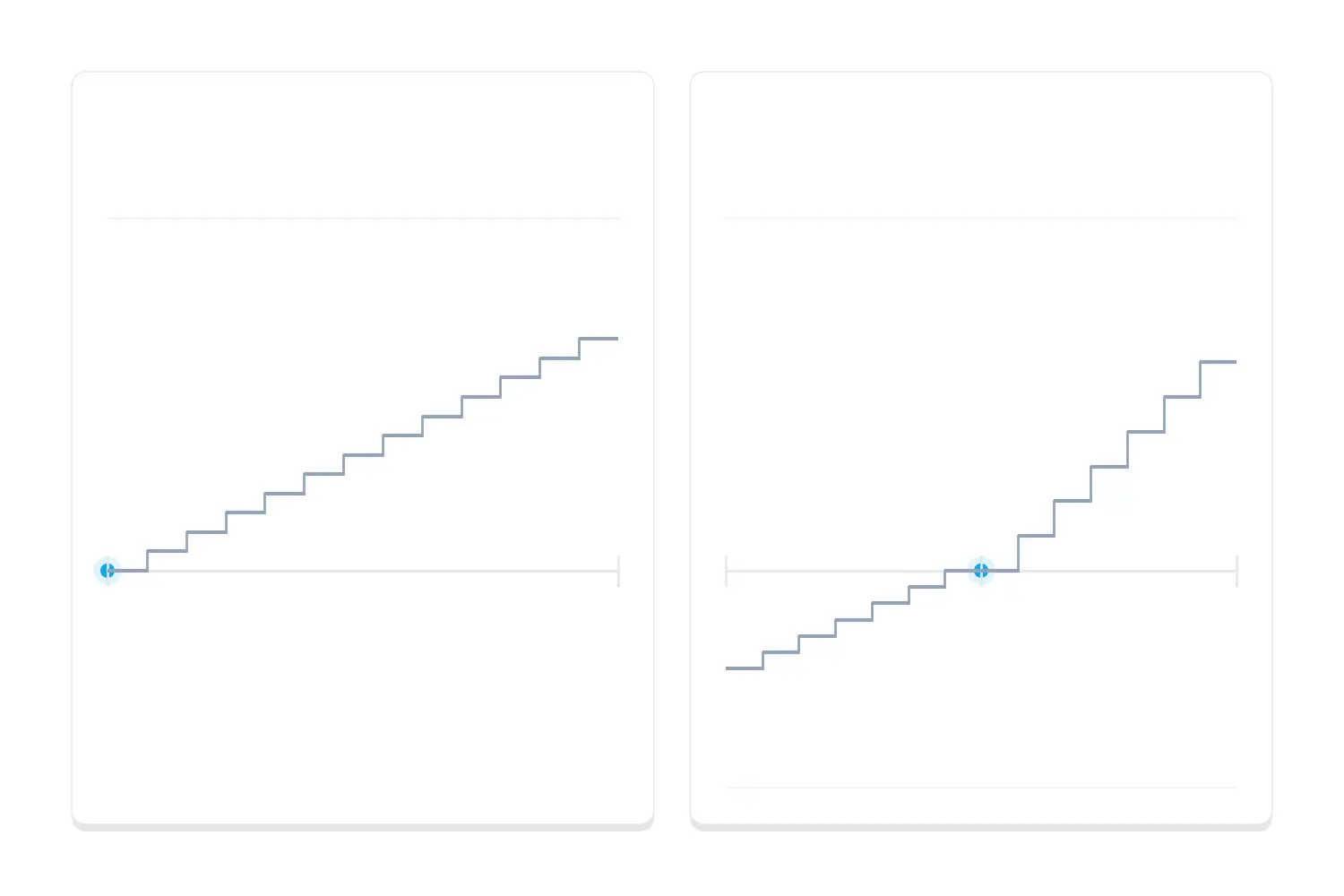

ADC codes and polarity: the unipolar range maps zero at the left end while the bipolar range places zero at mid-scale, guiding format choice (straight vs two’s-complement).

If zero sits at mid-scale, you likely want two’s-complement; if it sits at 0 V, straight binary fits. Next: Formats · Conversions.

Need a quick shortlist? Submit your BOM (48h).

Formats Explained

Code format defines how numeric codes map to physical levels and zero. Pick the format that matches your signal polarity and your MCU/DSP expectations before you write any math or filters.

2.1 Straight Binary

Definition. Code ∈ [0, 2ⁿ−1] maps 0…FS (for unipolar, FS = V_ref).

Formula. V = LSB × Code, with LSB = FS / 2ⁿ. Endpoint convention: +FS ≈ FS − 1 LSB.

Use when

Unipolar sensors (light, pressure, gas) or current-loop/voltage outputs with a floor near 0 V.
Simple scaling and display; no signed DSP needed.
You want monotonic codes from left (zero) to right (full scale).

Pitfalls

Treating straight data as if mid-scale were zero (that’s offset/two’s behavior).
Off-by-1 at full scale by ignoring +FS ≈ FS − 1 LSB.
Feeding left/right-justified words into math without first aligning bits.

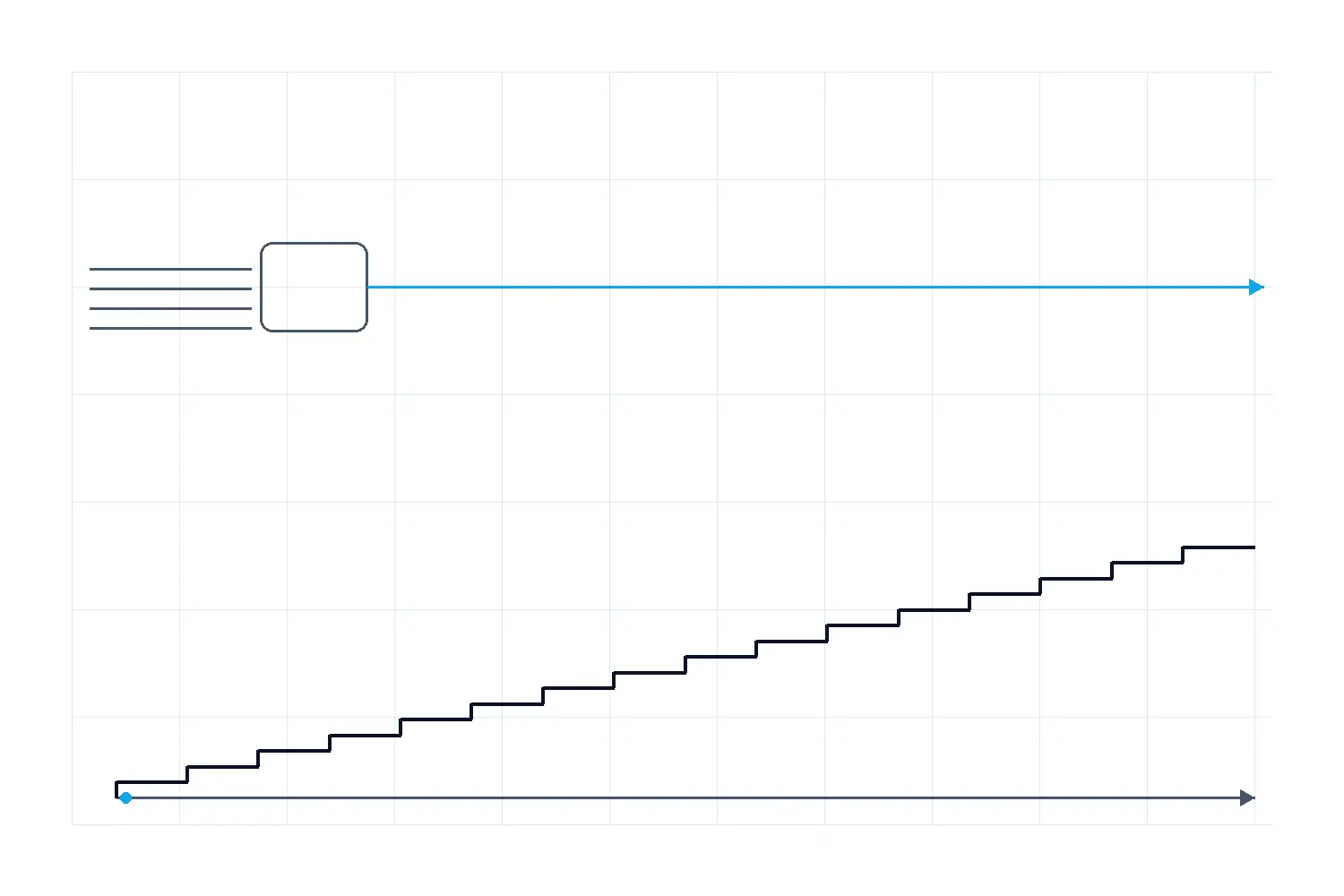

Straight binary maps unipolar inputs from zero at the left end to full scale at the right, with codes rising monotonically.

Example (n=12): Code 0 → 0 V; Code 4095 → FS − 1 LSB.

2.2 Offset-Binary

Definition. Mid-scale is zero; the MSB indicates sign polarity.

Formula. V = LSB × (Code − 2ⁿ⁻¹).

Use when

Interfacing with legacy/board-level systems that define zero at mid-scale.
Your AFE/ADC defaults to offset-binary or can be register-configured this way.
You want an easy bridge to two’s-complement via MSB inversion in firmware.

Pitfalls

Flipping all bits to get two’s-complement (correct fix: invert MSB only).
Wrong bit-width/alignment so mid-code isn’t exactly 2ⁿ⁻¹.
Treating offset-binary as signed in downstream math, causing zero shift.

Offset-binary places zero at mid-scale with the MSB indicating sign, making it a bridge between legacy interfaces and signed math.

Example (n=12): Code 0x800 → 0; 0x000 → −FS; 0xFFF → +FS − 1 LSB.

2.3 Two’s-Complement

Definition. Interpret code as a signed integer S ∈ [−2ⁿ⁻¹, 2ⁿ⁻¹−1].

Formula. V = LSB × S (LSB and FS defined by your bipolar span).

Use when

Bipolar signals (audio, vibration, acceleration) must feed signed DSP/filters.
Fixed-point pipelines (FFT/control loops) benefit from native signed values.
MCU/FPGA peripherals or drivers explicitly expect signed samples.

Pitfalls

Missing sign extension (reading 16-bit but treating as unsigned).
Left-justified reads shifting the sign bit out of place — align before interpretation.
Overflow/underflow without saturation or clipping strategy.

Two’s-complement encodes bipolar inputs as signed integers, with negative and positive halves around a mid-scale zero.

Example (n=16): 0x0000 → 0; 0x7FFF → +FS − 1 LSB; 0x8000 → −FS.

Not sure which your MCU expects? See conversion rules ↓

View conversions

Quick Formulas

Copy-ready formulas you can drop into firmware or analysis notebooks. Keep bit-width and alignment consistent before applying them.

Straight Binary

V = LSB × Code

LSB = FS / 2^n (for unipolar, FS = Vref)
Code ∈ [0, 2^n−1], monotonic map 0…FS
Endpoint: +FS ≈ FS − 1 LSB

Offset-Binary

V = LSB × (Code − 2^(n−1))

Mid-scale is zero: mid = 2^(n−1)
MSB indicates sign; to Two’s, invert MSB only
Ensure bit-width/alignment consistency

Two’s-Complement

interpret Code as signed S; V = LSB × S

S ∈ [−2^(n−1), 2^(n−1)−1] (do proper sign extension)
Best for ± signals and DSP/fixed-point pipelines
Align left/right-justified words before interpreting

Reminder: LSB = FS / 2ⁿ; endpoint conventions vary (+FS ≈ FS − 1 LSB). Keep bit-width and alignment consistent first. Need exact mapping rules? See conversions · Seeing zero shifts or inverted signs? Check pitfalls.

Three minimal cheat-sheet cards for ADC codes and polarity: straight binary, offset-binary, and two’s-complement with their voltage formulas.

Need help applying to your BOM? Submit your BOM (48h) .

3-bit Intuition Panel

Build intuition with a tiny n=3 example: where zero sits, how codes map, and what the endpoints mean. These 3-bit ADC codes tables show straight, offset-binary, and two’s-complement side by side. For n=3, LSB = FS / 2³ = FS/8.

Straight Binary (3-bit)

Unipolar map with zero at the left end; codes rise monotonically.

Code	Value (LSB)	Notes
000	0	Zero at left
001	1
010	2
011	3
100	4
101	5
110	6
111	7	≈ FS − 1 LSB

Offset-Binary (3-bit)

Zero sits at mid-scale; invert MSB to bridge to two’s-complement.

Code	Value (LSB)	Notes
000	−4
001	−3
010	−2
011	−1
100	0	Mid-code
101	+1
110	+2
111	+3

Two’s-Complement (3-bit)

Signed integer representation; ideal for DSP pipelines and two’s-complement 3-bit examples.

Code	Signed S	Notes
000	0	Zero at mid-scale
001	+1
010	+2
011	+3	Max positive
100	−4	Min (negative)
101	−3
110	−2
111	−1

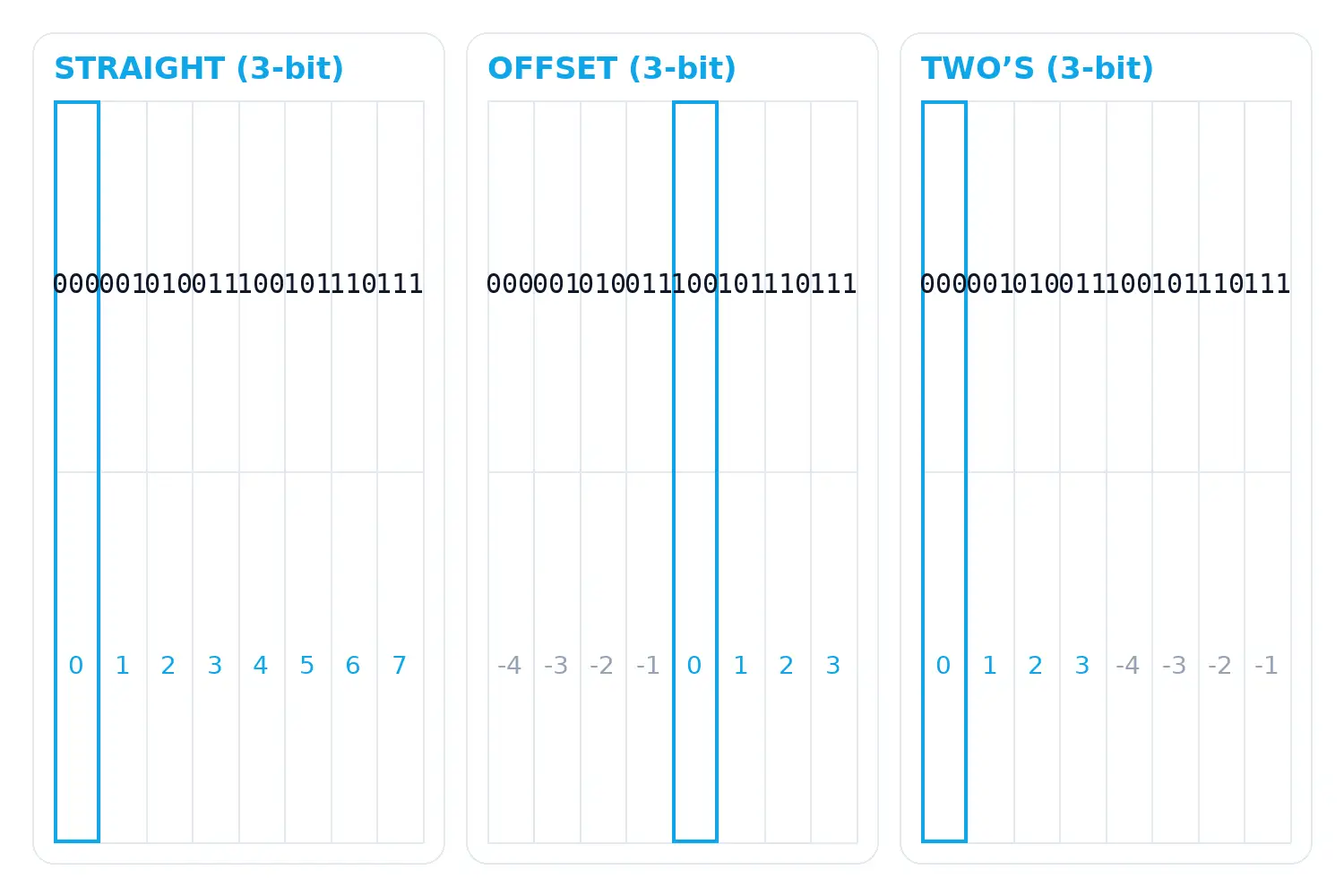

Three 3-bit ADC code tables showing intuition: straight binary with zero at the left, offset-binary with zero at mid-scale, and two’s-complement as signed integers.

Reminder: LSB = FS / 2ⁿ; endpoint conventions vary (+FS ≈ FS − 1 LSB). Keep bit-width and left/right justification consistent before you interpret format. Need exact mapping rules? See conversions. Want to verify quickly? Run the 2-minute test.

Keywords: 3-bit ADC codes, offset-binary 3-bit table, two’s-complement 3-bit examples.

Conversions That Matter

The most common mapping mistakes come from mixing formats or aligning bits incorrectly. Use the rules below and validate on a few boundary codes before you write filters or scalers.

Offset ↔ Two’s

twos = offset ^ (1 << (n-1))

Invert MSB only; keep the other bits. Always clamp to n bits: & ((1<<n)-1).

Straight ↔ Offset

offset = (straight + 2^(n-1)) mod 2^n

Equivalent bit trick: offset = straight ^ (1 << (n-1)) (flip MSB). This moves zero from left end to mid-scale.

Alignment ≠ Format

Left/right-justified is bit alignment, not a code format. Align to n valid bits first, then apply the format conversion and math.

Worked examples (n = 12, mid = 2¹¹ = 2048 = 0x800)

12-bit code conversions: Start (straight), Straight→Offset, Offset→Two’s, and signed interpretation
Start (straight)	Straight → Offset	Offset → Two’s	Interpretation (signed S)
0x7FF (2047)	0x7FF + 0x800 = 0xFFF (≡ 0x7FF ^ 0x800)	0xFFF ^ 0x800 = 0x7FF	Two’s 0x7FF → +2047 (max positive)
0x800 (2048)	0x800 + 0x800 = 0x000 (mod 4096)	0x000 ^ 0x800 = 0x800	Two’s 0x800 → −2048 (min negative)
0xFFF (4095)	0xFFF + 0x800 = 0x7FF (mod 4096)	0x7FF ^ 0x800 = 0xFFF	Two’s 0xFFF → −1

Notes: ^ is XOR; “mod 2ⁿ” equals keeping the low n bits (& ((1<<n)-1)).

C — align & convert (≤10 lines)

// n-bit align (e.g., 12-bit left-justified in 16-bit -> >> 4)
static inline uint16_t align_n(uint16_t raw16, int shift){ return raw16 >> shift; }

static inline uint16_t straight_to_offset(uint16_t x, int n){
  return (x ^ (1u<<(n-1))) & ((1u<<n)-1);
}
static inline uint16_t offset_to_twos(uint16_t x, int n){
  return (x ^ (1u<<(n-1))) & ((1u<<n)-1);
}
static inline int32_t twos_to_signed(uint16_t x, int n){
  uint32_t m=(1u<<n)-1; x&=m;
  return (x & (1u<<(n-1))) ? (int32_t)(x | ~m) : (int32_t)x; // sign-extend
}

Python — compact helpers (≤10 lines)

def straight_to_offset(x,n): return (x ^ (1<<(n-1))) & ((1<<n)-1)
def offset_to_twos(x,n):    return (x ^ (1<<(n-1))) & ((1<<n)-1)
def align_right(raw, n, word_bits=16, left_justified=True):
    return (raw >> (word_bits-n)) if left_justified else (raw & ((1<<n)-1))

Converting offset-binary to two’s-complement by inverting only the MSB; all other bits remain unchanged.

Switching between straight binary and offset-binary by adding or subtracting the mid-code 2^(n−1), equivalently flipping the MSB under modulo 2^n.

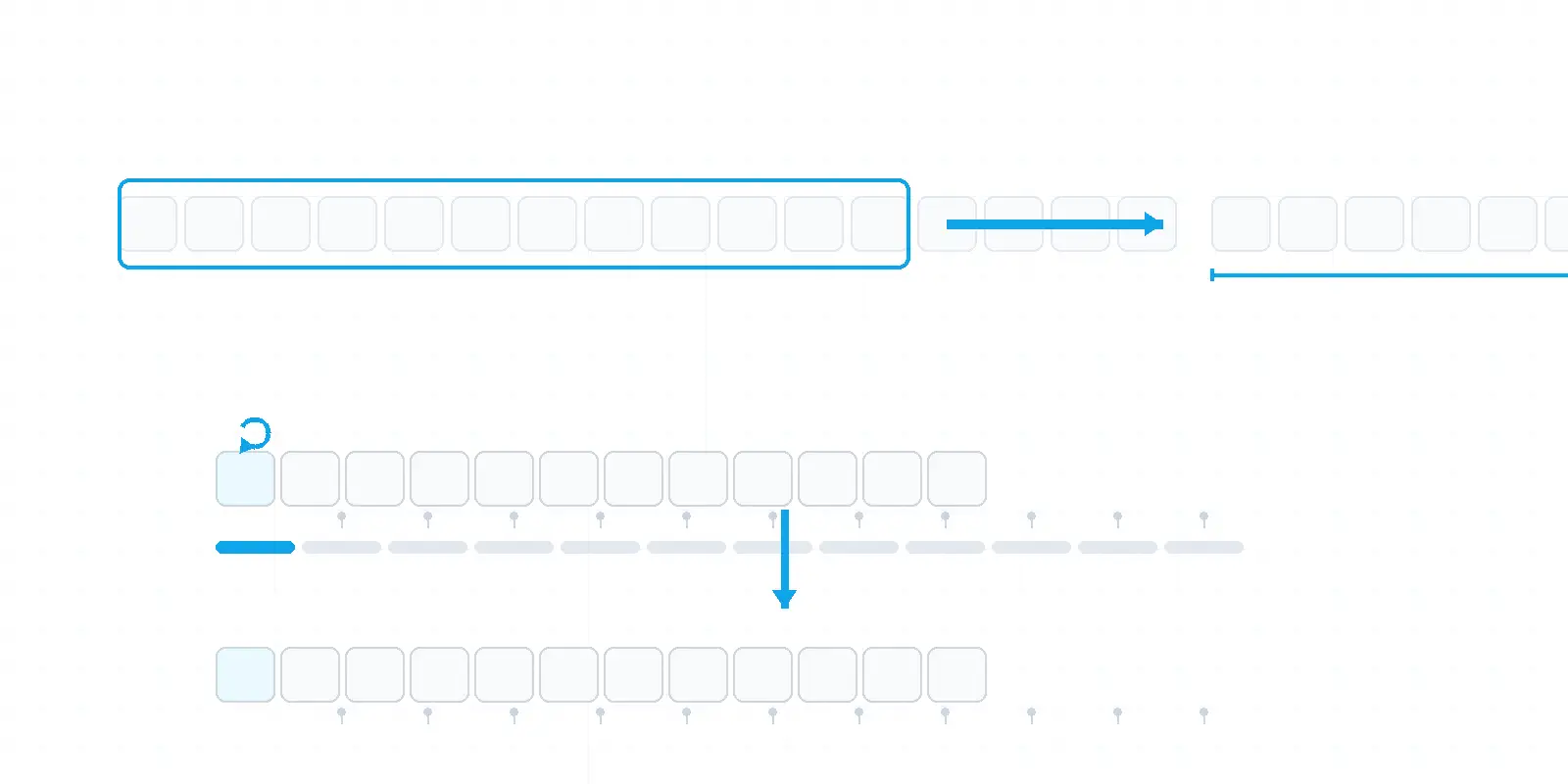

Left/right-justified is bit alignment, not a code format. Align to n valid bits first, then apply the format conversion and math.

Next: Common pitfalls & quick fixes · Want to validate fast? 2-minute verification.

Have a mixed-brand chain? We’ll map it cleanly →

Submit your BOM (48h)

Choose the Right Format

Decision: Unipolar (0…Vref) → Straight · True ± or DSP → Two’s · Legacy/board compatibility → Offset (or convert in firmware).

Single-ended sensing (current loop / light / pressure)

Signal: unipolar 0…Vref inputs (4–20 mA, 0–10 V after scaling, light/gas/pressure, etc.).
Recommendation: Straight Binary (zero at the left end; simplest scaling/thresholds).
Pitfalls: treating straight as offset; ignoring +FS ≈ FS − 1 LSB.

Immediate action: if the peripheral only outputs offset, convert in firmware: straight = offset ^ (1<<(n-1)).

Bridge / instrumentation front-end (differential, strain, load cell)

Signal: true ± with mid-scale zero, via INA/programmable gain into the ADC.
Recommendation: Two’s-Complement (feeds signed DSP/filters directly).
Pitfalls: reading offset-binary as two’s; misaligned left/right-justified words shifting the sign bit.

Immediate action: enable two’s mode; if only offset is available, invert MSB only: twos = offset ^ (1<<(n-1)).

Audio / vibration → DSP

Signal: acoustic/acceleration/vibration destined for frequency-domain processing (FFT/filters/control).
Recommendation: Two’s-Complement (natural match for fixed-point libraries).
Pitfalls: missing sign extension; using left-justified samples without aligning first.

Immediate action: align to n bits → interpret as two’s → convert LSB to physical units; add saturation/clipping in the ISR.

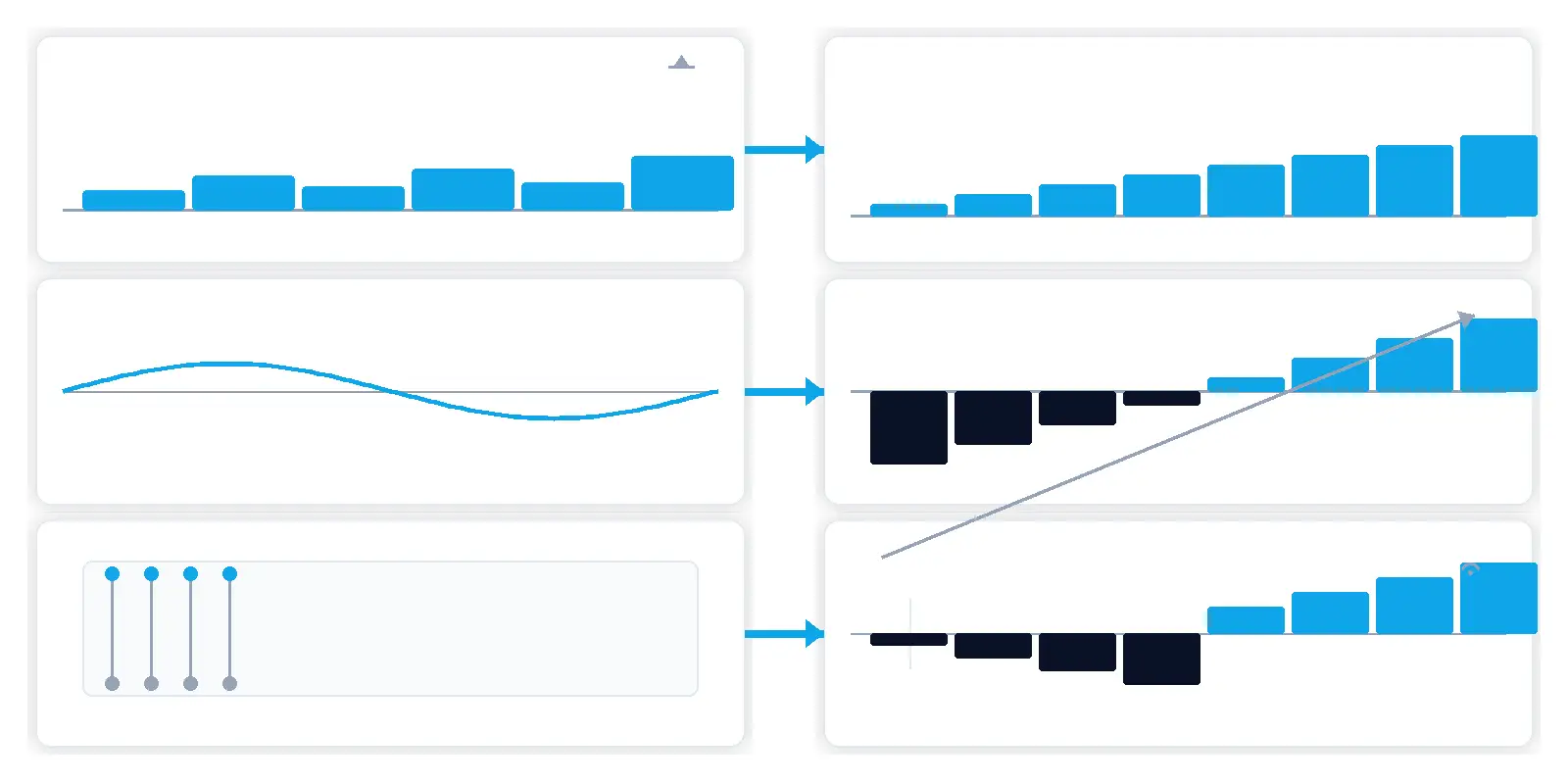

Decision flow from signal polarity and downstream math to ADC code formats: unipolar to straight, bipolar or DSP to two’s-complement, legacy interfaces to offset or firmware conversion.

Remember: alignment ≠ format — align bits to n first, then interpret format. Need rules? See conversions · Seeing anomalies? Check pitfalls · Want a quick validation? 2-minute test.

Submit your BOM (48h) IC selection guide

Common Pitfalls & Debug

Most ADC headaches are polarity/format mixups or bit-alignment errors. Use this one-screen guide: Symptom → Likely cause → Quick fix.

Diagnostic table mapping symptoms to likely causes and quick fixes for ADC code formats
Symptom	Likely cause	Quick fix
Zero at mid but readings are globally shifted	Offset-binary treated as two’s (or vice versa)	Verify `mid-code = 2^(n−1)` first, then convert with the MSB-only rule
Sign looks inverted	Flipped all bits when converting offset ↔ two’s	Use `twos = offset ^ (1 << (n-1))` (invert MSB only)
Full-scale off by 1 LSB	Endpoint convention mismatch	Treat +FS ≈ FS − 1 LSB; adjust scaling/display
DMA data looks “striped” or garbage	Left/right-justified misalignment	Align to n valid bits (shift/mask) before interpreting format
Mid-code not exactly centered	Wrong bit-width or truncation; no masking	Clamp: `code &= (1<<n) - 1` prior to math/sign-extension

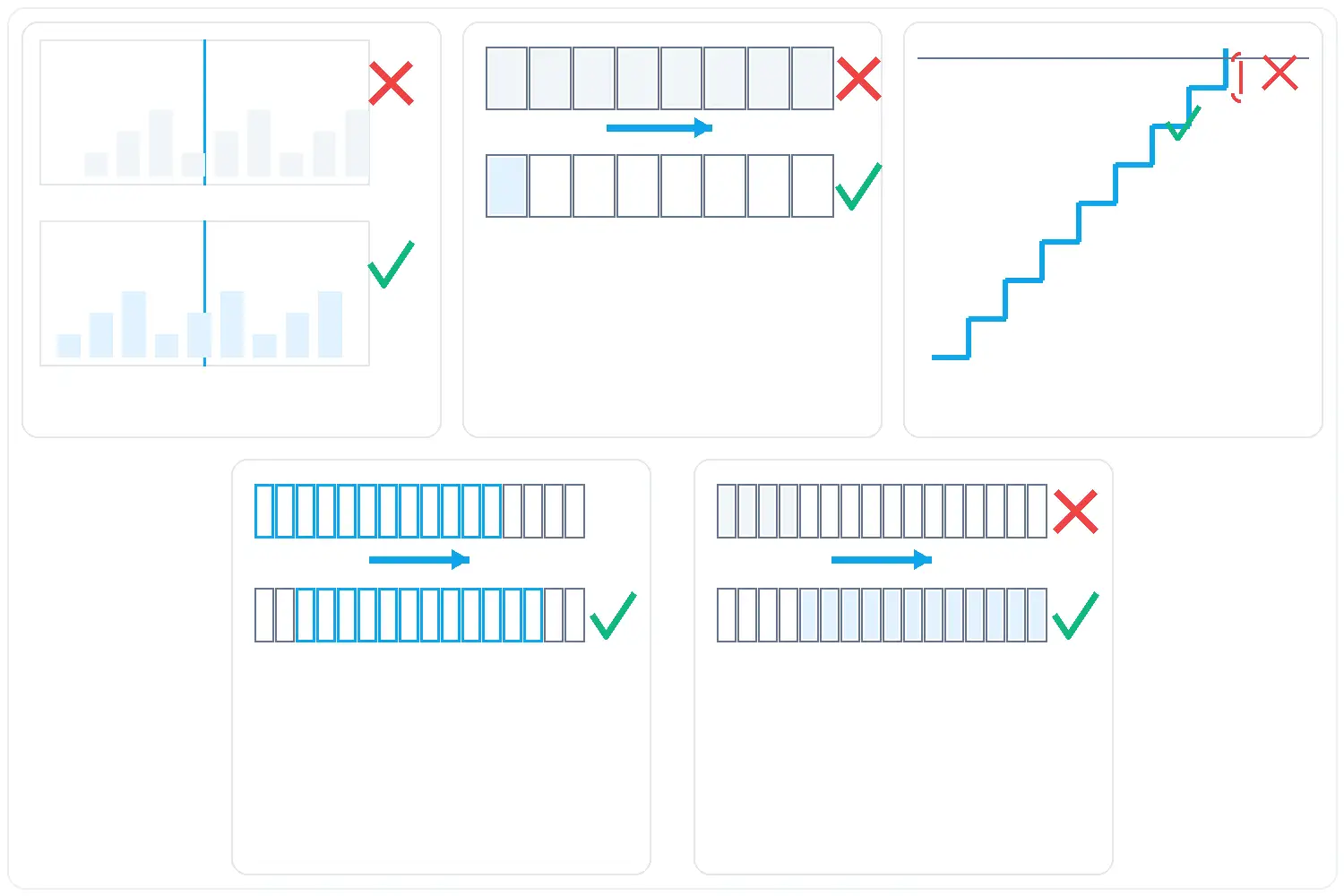

Typical ADC polarity and code-format pitfalls: zero shift, sign inversion, endpoint off-by-one, and bit misalignment—with quick fixes highlighted.

Alignment ≠ format — shift/mask first, then interpret/convert.
Always clamp to n bits before arithmetic or sign-extension.
Validate on three boundary codes: mid (2^(n−1)), +FS−1 LSB, and −FS; or run the 2-minute ramp/sine test.

Need the exact mapping rules? See conversions.

Stuck on a tricky trace? Get a debug pack in 48 hours →

Debug pack in 48h

Verification & Test Snippets

A two-minute sanity check to confirm both format and bit alignment before data hits filters or FFT. Use a ramp or a short sine capture, then validate mid-code, sign, endpoints, and alignment.

2-Minute checklist

Align & clamp: code = (raw >> shift) & ((1<<n)-1) to get n valid bits.
Mid-code: check if zero sits at 2^(n−1) (offset/two’s path) or at the left end (straight).
Sign sanity: two’s should be symmetric around 0; offset symmetric around mid; straight has no negative side.
Endpoints: observe 0 and 2^n−1; treat +FS ≈ FS − 1 LSB.
Boundary probe: test three codes (e.g., n=12: 0x7FF, 0x800, 0xFFF) and confirm expectations.

Method A — Ramp (monotone)

Capture 2–4k samples while input ramps up or down.
Straight: codes increase 0→2^n−1 with zero at the left end.
Offset: a clear boundary at mid = 2^(n−1); symmetry on both sides.
Two’s: when interpreted as signed, the sequence crosses 0 monotonically.

Method B — Sine code-density

Capture 2–10k samples of a sine (no strict coherence required).
Two’s: histogram centered at 0; negative and positive counts are similar.
Offset: histogram centered at mid; nearly no “negative” notion.
Straight: distribution sits to the right (no negative half).
Zero shift or sign inversion indicates a format/align mismatch.

C — align, convert, sign-extend

// Align to n bits (e.g., 12-bit left-justified in 16-bit)
static inline uint16_t align_n(uint16_t raw16, int n, int left_justified){
  int shift = left_justified ? (16 - n) : 0;
  return (raw16 >> shift) & ((1u<<n) - 1);
}
// Offset <-> Two's (MSB only)
static inline uint16_t offset_to_twos(uint16_t x, int n){
  return (x ^ (1u<<(n-1))) & ((1u<<n)-1);
}
static inline uint16_t straight_to_offset(uint16_t x, int n){
  return (x ^ (1u<<(n-1))) & ((1u<<n)-1); // same as +2^(n-1) mod 2^n
}
// Two's to signed 32 (sign extension)
static inline int32_t twos_to_s32(uint16_t x, int n){
  uint32_t m = (1u<<n) - 1; x &= m;
  return (x & (1u<<(n-1))) ? (int32_t)(x | ~m) : (int32_t)x;
}

Python — vectorized log check

import numpy as np
raw = np.fromfile("samples_u16.bin", dtype=np.uint16)  # or np.loadtxt("log.csv", dtype=np.uint16)
n, left_justified = 12, True
shift = (16 - n) if left_justified else 0
code = (raw >> shift) & ((1<<n)-1)

def offset_to_twos(x,n): return (x ^ (1<<(n-1))) & ((1<<n)-1)
def twos_to_s32(x,n):
    m=(1<<n)-1; x = x & m; neg = (x & (1<<(n-1))) != 0
    return np.where(neg, x | ~m, x).astype(np.int32)

mid = 1<<(n-1)
s_off = code - mid
s_twos = twos_to_s32(offset_to_twos(code, n), n)
print("mean(code)=", code.mean(), " mid=", mid, " mean(s_twos)=", s_twos.mean(),
      " neg/pos=", (s_twos<0).sum(), (s_twos>=0).sum())

Plot two histograms: one centered at mid (offset path) and one centered at 0 (two’s path). A shifted center suggests a wrong mapping or alignment.

Code-density histograms showing a correctly centered distribution versus a wrongly mapped format with zero shifted.

Alignment first, format second: shift/mask to n bits before conversion or sign extension.
Confirm mid = 2^(n−1) and treat +FS ≈ FS − 1 LSB.
When in doubt, test the three boundary codes or run the ramp/sine density check.

Need exact conversion formulas? See conversions · Seeing odd symptoms? Check pitfalls.

Attach a short log in your BOM and we’ll validate the mapping for you →

Submit your BOM (48h)

FAQ — Codes & Polarity

When should I use straight vs offset-binary vs two’s-complement?

Use straight vs offset-binary vs two’s-complement based on signal polarity and downstream math. Unipolar 0…Vref chooses straight for simple scaling. True ± signals or DSP pipelines choose two’s for native signed math. Legacy/board interfaces choose offset, or convert to two’s by inverting only the MSB after aligning and masking to n bits.

How do I convert offset-binary to two’s-complement safely?

Convert offset-binary to two’s-complement safely by inverting only the MSB. Use twos = offset ^ (1 << (n-1)), then clamp with & ((1<<n)-1) and align samples first. Verify three points: offset mid-code → two’s 0; offset 0 → two’s negative min; offset max → two’s +FS−1 LSB. Never flip all bits.

Why do zero shifts or inverted signs appear?

Zero shifts or inverted signs appear when the code format or alignment is wrong. Common causes: treating offset as two’s (mid-code becomes a non-zero bias), flipping all bits during conversion, or using left/right-justified words without shifting. Fix by aligning to n bits, applying MSB-only or mid-shift rules, and verifying endpoints.

MCU expects signed, but the ADC outputs offset—what now?

If your MCU expects signed data and the ADC outputs offset-binary, convert in firmware. Align the sample to n bits, then do twos = offset ^ (1 << (n-1)), and sign-extend if promoting to 16/32-bit integers. Validate with a ramp or short sine histogram; document the mapping to prevent future mistakes.

Do left-justified outputs change the code format?

Left-justified outputs do not change the code format. Justification controls bit placement, not whether data is straight, offset, or two’s. Always shift/mask into n valid bits first, then interpret or convert the format. Skipping this step commonly yields wrong sign bits, mid-code bias, and “striped” DMA data.

Still unclear? Submit your BOM (48h).
