STMicroelectronics

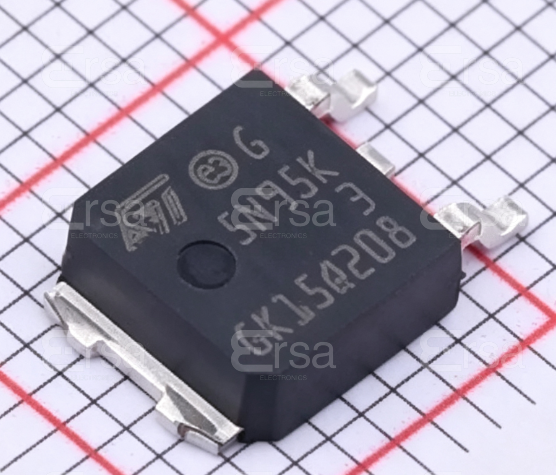

STD5N95K3

Single FETs, MOSFETs

STD5N95K3 Description

The STD5N95K3 is a high-performance N-Channel MOSFET from STMicroelectronics, designed for applications requiring robust power handling and efficient switching. It is part of the SuperMESH3™ series, known for its advanced technology and superior performance. The device is currently active and compliant with REACH and RoHS3 regulations, ensuring environmental safety and sustainability.

STD5N95K3 Features

• Technology: MOSFET (Metal Oxide), leveraging the latest technology for improved performance and reliability.
• Drain to Source Voltage (Vdss): 950V, suitable for high-voltage applications.
• Current - Continuous Drain (Id) @ 25°C: 4A, providing ample current for demanding tasks.
• Rds On (Max) @ Id, Vgs: 3.5Ohm @ 2A, 10V, ensuring low on-resistance for efficient power delivery.
• Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 10 V, contributing to fast switching and reduced power loss.
• Input Capacitance (Ciss) (Max) @ Vds: 460 pF @ 25 V, minimizing capacitive effects and improving performance.
• Vgs (Max): ±30V, allowing for a wide range of gate voltages.
• Vgs(th) (Max) @ Id: 5V @ 100µA, ensuring reliable threshold voltage performance.
• Power Dissipation (Max): 90W (Tc), capable of handling significant power dissipation.
• Moisture Sensitivity Level (MSL): 1 (Unlimited), indicating high resistance to moisture-related degradation.
• Mounting Type: Surface Mount, facilitating easy integration into surface-mount technology (SMT) processes.

STD5N95K3 Applications

The STD5N95K3 is ideal for applications that demand high voltage and current handling capabilities, such as:

• Power Supplies: Due to its high Vdss and Id ratings, it is suitable for power supply designs.
• Industrial Control Systems: The robust construction and high power dissipation make it ideal for industrial control applications.
• Automotive Electronics: The ability to handle high voltages and currents, along with its automotive-grade packaging, makes it suitable for automotive electronics.
• RF Power Amplifiers: The low on-resistance and fast switching capabilities are beneficial in RF power amplifier designs.

Conclusion of STD5N95K3

The STD5N95K3 stands out with its high voltage and current ratings, low on-resistance, and fast switching capabilities, making it a superior choice for high-performance applications. Its compliance with environmental regulations and advanced technology position it as a leading solution in the market. Whether used in power supplies, industrial control systems, or automotive electronics, the STD5N95K3 delivers reliable performance and efficiency.

STD5N95K3 Documents

Download datasheets and manufacturer documentation for STD5N95K3

PCN Assembly/Origin :

Assembly Site 22/Dec/2022

Datasheets :

STx5N95K3

PCN Packaging :

Mult Dev Inner Box Chg 9/Dec/2021

Other Related Documents :

STD5N95K3 View All Specifications

HTML Datasheet :

STx5N95K3
