Oscillator: RC/LC/Crystal, VCO & PLL

What Is an Oscillator?

An oscillator is an active electronic circuit that converts DC power into a continuous, periodic AC signal using feedback and a frequency-setting network. In practice, most designs fall into two paths: harmonic (LC/Crystal/MEMS) and relaxation (RC/Schmitt/555).

Harmonic (LC/Crystal/MEMS)

Resonator selects f₀ and phase
Low distortion sine outputs
Best stability (XO/TCXO/OCXO/MEMS)
Used for clocks, RF references

Relaxation (RC/Schmitt/555)

Frequency set by RC time constants
Easy, low cost, wide range
Square/triangle waveforms by design
Great for LFO, blink, beep

Not the same as: a power inverter (high-power DC→AC converter), or financial “oscillators.” This page covers electronic timing oscillators.

What is the definition of an oscillator?

An oscillator is an active circuit that converts DC power into a continuous, periodic AC signal using feedback and a frequency-setting network.

What is an oscillator used for?

Timing references, system clocks, RF carriers and local oscillators, audio tones, test and calibration signals.

Does an oscillator convert DC to AC?

Yes. It draws DC and produces an AC waveform through positive feedback—different from a high-power inverter.

What is oscillation in easy words?

A repeating back-and-forth change—like a swing—realized here as a periodic voltage over time.

Harmonic vs relaxation oscillator blocks: LC/Crystal/MEMS vs RC/Schmitt/555. — Two implementation paths for oscillators: harmonic (resonator-based) and relaxation (RC-based).

Dive deeper into loop behavior in Working Principles, or jump directly to formulas in RC Oscillator.

Submit your BOM

Working Principles — Two Paths

Oscillators sustain a periodic signal when the loop meets the Barkhausen conditions and either a resonator or an RC network sets the frequency. Below, we contrast the Harmonic (LC/Crystal/MEMS) path with the Relaxation (RC/Schmitt/555/Phase-Shift/Wien) path.

Harmonic vs relaxation oscillator blocks: LC/Crystal/MEMS vs Schmitt/555/Phase-shift/Wien. — Two ways to sustain oscillation: resonator-based (harmonic) versus RC-based (relaxation).

2.1 Harmonic (LC / Crystal / MEMS)

Theory & formulas

Barkhausen: loop gain ≥ 1 at f₀ and net phase shift = 0°.
LC frequency: f ≈ 1/(2π√(LC)).
Reactances: X_L = 2πfL, X_C = 1/(2πfC), at resonance X_L = X_C.
Q factor: Q = ω₀L/R = 1/(ω₀CR) → higher Q narrows bandwidth and lowers phase noise.

Engineering notes

Crystal/MEMS set frequency: XO/TCXO/OCXO trade temperature performance and warm-up time.
MEMS: robust against shock/vibration, easy to program; phase-noise may trail premium crystals at some offsets.
Amplitude control: limiter/AGC prevents overdrive; respect crystal drive level and load-cap specs.
Use cases: system clocks, RF LOs, precision timing (ppm-class stability).

How does an oscillator work?

Noise starts the loop; the resonator selects f₀; positive feedback sustains oscillation and amplitude limiting sets steady state.

What is the Q factor formula?

Q = ω₀L/R = 1/(ω₀CR). Higher Q means narrower bandwidth and typically lower phase noise.

Why do we use LC circuits?

LC resonators are high-Q, tunable, and deliver lower phase noise than RC networks for sinusoidal/RF designs.

Is a laser an oscillator?

Yes—an optical cavity oscillator. This page focuses on electronic oscillators.

2.2 Relaxation (RC / Schmitt / 555 / Phase-Shift / Wien)

Reusable formulas

Schmitt-RC (normalized thresholds):
α_H = V_T+ / V_CC, α_L = V_T− / V_CC
t_chg = RC · ln((1 − α_L)/(1 − α_H))
t_dis = RC · ln(α_H/α_L)
T = t_chg + t_dis, f = 1/T, D = t_chg / T
Starting picks: R = 10 kΩ … 1 MΩ, C = 100 pF … 1 µF.
555 astable:
f ≈ 1 / (ln2 · (R_A + 2R_B) · C)
D = (R_A + R_B) / (R_A + 2R_B) (add a diode to approach 50%).
3-section phase-shift: f ≈ 1 / (2πRC√6); loop gain ≥ 29.
Wien bridge: f ≈ 1 / (2πRC); amplitude control via lamp/JFET/AGC.

Practical notes

Use cases: low-cost timing, blinkers, beeps, LFOs.
Accuracy: RC tolerances & temp drift → not for ppm-grade timekeeping.
Waveforms: Schmitt/555 favor square; integrator stages produce triangle/sine variants.
Tuning: pick mid-range R/C, trim in test; prefer C0G/NP0 for stability.

What is an RC and LC oscillator?

RC oscillators rely on charge/discharge time constants (relaxation). LC oscillators use an inductor-capacitor resonator (harmonic).

What is the most simple oscillator?

A Schmitt-trigger RC relaxation or a 555 astable—one active element plus R/C network.

What is oscillator frequency?

The cycles-per-second value set by the resonator (LC/crystal/MEMS) or by RC time constants; measured in hertz (Hz).

How is an oscillator made?

Choose a frequency-setting network (LC/crystal/RC), add an amplifier, close a positive-feedback loop, and implement amplitude limiting.

Continue to Types & Signals, or jump to integration tips in Integration Cheatsheets.

Submit your BOM

Types & Signals

Different oscillator types favor different waveforms and stability bands. In practice, designers pick from three buckets—Crystal/MEMS, LC, and RC—based on accuracy, frequency range, and cost/time-to-market.

Type	Typical Output	Stability (typ.)	Typical Frequency	Notes
Crystal / MEMS	CMOS square (modules) / low-jitter refs; sine in analog implementations	ppm-class (XO/TCXO/OCXO/MEMS)	kHz → 100+ MHz (device-dependent)	System clocks, sync refs; best for accuracy & low jitter
LC (Harmonic)	Low-distortion sine	Mid-high (Q-dependent; below premium crystals)	MHz → GHz (set by L/C/Q)	Tunable RF LOs/VCOs; phase-noise control with PLL
RC (Relaxation) Schmitt / 555 / Phase-shift / Wien	Square / triangle / near-sine (Wien/phase-shift)	Tolerance & temperature limited	Hz → 100s kHz (Wien/phase-shift higher with care)	Low-cost timing, blinkers, beeps, LFOs; fast to implement

Most common for system clocks → Crystal/MEMS

Ppm-level stability and mature ecosystems make crystal/MEMS oscillators the default for timing and synchronization.

Quick timing / blink / beep → RC/555

Lowest BOM and fastest bring-up; accept wider tolerance and temperature drift compared to crystal-based solutions.

Tunable RF local oscillator → LC or VCO+PLL

High-Q resonators and synthesis loops provide controllable phase noise and agile frequency plans.

Three vs Four: In engineering practice we use three buckets—Crystal/MEMS, LC, and RC. In physics, “four types of oscillations” describe behaviors—undamped, damped, forced, sustained—only the last is desired in circuits.

What are the types of oscillators?

Engineering buckets: Crystal/MEMS (XO/TCXO/OCXO/MEMS), LC (harmonic), and RC (Schmitt/555/phase-shift/Wien).

What is the most commonly used oscillator?

Crystal/MEMS for system clocks and references due to ppm-level stability and low jitter; RC/555 for simple, low-cost timing.

What are the three/four types of oscillators/oscillations?

Three engineering types: Crystal/MEMS, LC, RC. The “four types” in physics describe behaviors—undamped, damped, forced, sustained.

Oscillator type × waveform × stability × frequency matrix. — Visual matrix: type vs waveform vs stability vs frequency range.

Next, compare implementation trade-offs in Discrete vs IC — How to Choose, or jump to Brand & Part Picks.

Submit your BOM

Discrete vs IC — How to Choose

Choosing between a discrete oscillator circuit and an oscillator/clock IC comes down to BOM cost, accuracy (ppm) & phase noise, programmability (VCO/PLL), start-up time, temperature drift, EMI/PSRR, and package/supply domain. The common options are RC/Schmitt/555 and LC (discrete builds), plus Crystal/MEMS oscillators and Clock-Generator/PLL ICs.

Option	BOM Cost	Accuracy (typ.)	Phase Noise & Jitter	Programmability	Start-up	Temp Drift	EMI & PSRR	Voltage & I/O	Notes
RC / Schmitt / 555 (discrete)	Lowest (R/C + one IC)	Percent-level	Fair; edges noisy vs crystal	By R/C values; limited	Fast (µs–ms)	High (R/C tolerance & TCR)	Square edges → EMI; PSRR varies	CMOS/TTL; flexible rails	Great for quick timing/LFO; not for ppm clocks
LC (discrete harmonic)	Low–Mid (needs L, active device)	‰–% (Q-dependent)	Good (sine); Q & amplifier matter	Tunable via varactor/VCO	Fast (µs–ms)	Mid (component drift)	Lower EMI (sine); PSRR moderate	Analog sine; may need buffering	Best for tunable RF LOs; pairs with PLL
Crystal/MEMS Oscillator (IC/module)	Mid (single part BOM)	ppm-class (XO/TCXO/OCXO/MEMS)	Low jitter; excellent with high-grade XO/OCXO	MEMS often programmable; crystals fixed	XO: ms–100ms; TCXO: 100ms–s; OCXO: tens of s	Low (TCXO/OCXO best)	Good PSRR; decouple close to pins	Fixed Vdd; CMOS or clipped-sine outputs	Default choice for system clocks & references
Clock-Generator / PLL (with VCO)	Mid–High (IC + reference XO)	Inherits reference (ppm)	Can be excellent; jitter-cleaning & synthesis	High via I²C/SPI (dividers, mux, fractional-N)	Lock time: ms-class	Follows reference; low	Supply/ground noise affects jitter; careful PSRR/PLL filtering	Multi-rail; LVDS/LVPECL/CMOS fan-out	Best for multi-clock trees, flexible frequency plans

Radar comparison: cost, time-to-market, accuracy, drift, phase-noise, flexibility for RC/LC/Crystal-MEMS/PLL. — No single winner—pick the option that best matches your weighted specs.

Accuracy / jitter / sync: choose Crystal/MEMS or a Clock-Generator IC with a quality reference.

Simple / low cost: go with RC/Schmitt/555.

Tunable / synthesized: use VCO/PLL/Clock-Generator.

Practical tips. Power-supply ripple and ground return currents modulate phase noise and jitter—prioritize decoupling and clean references. Check package size, operating voltage, and output logic (CMOS/LVDS/LVPECL/clipped sine) and verify fan-out/drive strength. MEMS parts tolerate shock/vibration better; crystals age but deliver top stability when thermally controlled.

Which is the best oscillator?

It depends on your spec. Use Crystal/MEMS for accuracy and low jitter, LC for tunable RF and good phase noise, and RC/555 for simple, low-cost timing.

Difference between an amplifier and an oscillator?

An amplifier needs a driving signal and provides gain. An oscillator self-generates a periodic signal by closing a positive-feedback loop around a frequency-setting network.

Submit your BOM

Application Playbook

Map typical use cases to the right oscillator path. For clocks and synchronization, Crystal/MEMS or a Clock-Generator IC dominate. For quick timing and beeps, RC/Schmitt/555 excel. Audio prefers low-distortion sine sources, while RF LOs combine a VCO and PLL around a clean crystal reference.

System clock / synchronization

Recommended: Crystal/MEMS XO or a Clock-Generator IC (with high-quality XO/TCXO).

Watch: jitter budget, ppm stability, load-cap selection (e.g., 12.5 pF watch crystals).
Output format: CMOS/LVDS/LVPECL; check fan-out and terminations.
Start-up: XO ≲ 100 ms; TCXO/OCXO longer; decouple close to pins.

Low-cost timing / blink / beep / watchdog

Recommended: Schmitt-RC or 555 astable.

Starter range: R = 10 kΩ … 1 MΩ, C = 100 pF … 1 µF.
Board calibration: swap C or add a small series R; prefer C0G/NP0 caps.
Temperature drift follows R/C tolerances—avoid ppm-class expectations.

Audio tone & LFO

Recommended: Wien bridge or 3-section phase-shift for low-distortion sine; RC integrator + Schmitt for triangle/LFO.

Amplitude control (lamp/JFET/AGC) prevents clipping; buffer the sine output.
LFOs: square/triangle from Schmitt + integrator for synth/modulation.

RF Local Oscillator (LO) / Synthesized clocks

Recommended: VCO + PLL with a crystal reference (10/20/25/27/38.4 MHz typical).

Loop bandwidth (~10–200 kHz) trades lock time vs phase noise.
Use clean references, isolated supplies, and proper loop-filter layout.

Mini recipes (starter values)

Schmitt-RC square ≈ 120 Hz LED blinker

Take α_H≈0.6, α_L≈0.4 → f ≈ 1.23/(RC). Try R = 100 kΩ, C = 100 nF → ≈ 123 Hz.

555 beep ≈ 1 kHz

Use f ≈ 1/(ln2·(R_A+2R_B)·C). Start R_A=R_B=47 kΩ, C=10 nF → ≈ 1.0 kHz. Add a diode across R_B to approach 50% duty.

Wien sine ≈ 1 kHz

f ≈ 1/(2πRC). Pick R=15.9 kΩ, C=10 nF; stabilize amplitude with a lamp/JFET/AGC.

How do oscillators make sound?

They generate periodic voltages (sine/square) that drive a speaker. For clean tones use Wien/phase-shift; for simple beeps use 555 or Schmitt-RC.

Two examples of oscillation?

A 32.768 kHz watch crystal for timekeeping, and a 74HC14 Schmitt-RC LED blinker on a breadboard.

Does a car have an oscillator?

Yes. ECUs, infotainment, radios, GNSS, and sensor modules rely on crystal/MEMS clocks throughout the vehicle.

Application map linking oscillators to use cases: system clock/sync, RC timing, audio LFO, RF LO. — From timing to RF: pick the path that matches accuracy, drift, and waveform needs.

Continue with wiring and layout tips in Integration Cheatsheets, or browse recommended parts in Brand & Part Picks.

Submit your BOM

Integration Cheatsheets

Wiring, grounding, and power integrity directly decide start-up margin, jitter, and drift. This section provides copy-and-paste checklists for Crystal chains and RC/Schmitt chains, plus bring-up steps and quick formulas.

Crystal chain

Load capacitance: C_L(spec) = (C1·C2)/(C1+C2) + C_stray; if C1=C2=C, then C ≈ 2·(C_L − C_stray) with C_stray ≈ 2–5 pF.
Drive level limit: respect crystal power (watch ≈ µW; general 10–200 µW). Use a small series resistor to limit drive and aid start-up margin.
Grounding & layout: shortest loop between MCU/osc pins and crystal; guard ring / local ground island; place 100 nF + 1 µF decoupling close to oscillator supply pins.
Thermal: keep away from heaters/VRMs; TCXO/OCXO have warm-up (hundreds ms → tens of seconds).
Start-up margin: avoid excessive C_L or aggressive series limiting; verify oscillation amplitude and frequency within a few hundred ms.

RC / Schmitt chain

Decoupling: 0.1 µF at each logic/555 Vdd pin; add 1–10 µF bulk per rail segment.
Series resistors: output 50–100 Ω to tame edges/EMI; input 100–330 Ω for ESD/ringing damping.
Duty fix (555): add a diode across R_B to approach 50% duty.
5V tolerant: many LVC/LCX gates are input-tolerant at 5 V—check the datasheet. For domain crossing, use open-drain/open-collector + pull-up.
Pull-ups: pick target current I_PU (e.g., 1–4 mA) ⇒ R_PU ≈ (VDD − V_OH_margin)/I_PU; rise time t_r ≈ 2.2·R_PU·C_node.
Threshold survey: sweep the input with a DAC/pot to measure V_T+/V_T−; compute α_H = V_T+/V_CC, α_L = V_T−/V_CC then use chapter-2 formulas for f and duty.

Power & frequency offset. Supply ripple modulates RC charge and active loops, shifting frequency and adding jitter. Use low-noise LDOs, star grounds, short return paths, and split analog/digital planes where practical. For timing networks choose C0G/NP0 (stable) and keep X7R for decoupling—avoid Y5V/Z5U in timing paths.

Bring-up checklist

Pre-power DRC: verify values/orientation/footprints; ensure the loop is shortest (crystal) or that RC leads are compact.
First power-on: check oscillation with counter/scope/spectrum; for crystals, probe the amplifier node; for RC/Schmitt, confirm clean threshold crossings.
Trim: adjust C_L (crystal) or R/C (RC) to hit frequency; log temperature drift across ambient range.
EMC smoke test: near-field probe for harmonics; add series resistors/RC snubbers or lower drive if needed.

What is oscillator frequency (how to measure)?

Use a frequency counter for accuracy, a spectrum analyzer to view carriers/phase-noise skirts, or an oscilloscope for quick checks (ensure sufficient timebase accuracy and probing bandwidth). Buffer high-Q nodes before probing to avoid detuning.

How to calculate impedance? What are XL and XC?

Use X_L = 2πfL and X_C = 1/(2πfC). At resonance of an LC network, X_L = X_C, which defines the natural frequency and supports low-loss harmonic oscillation.

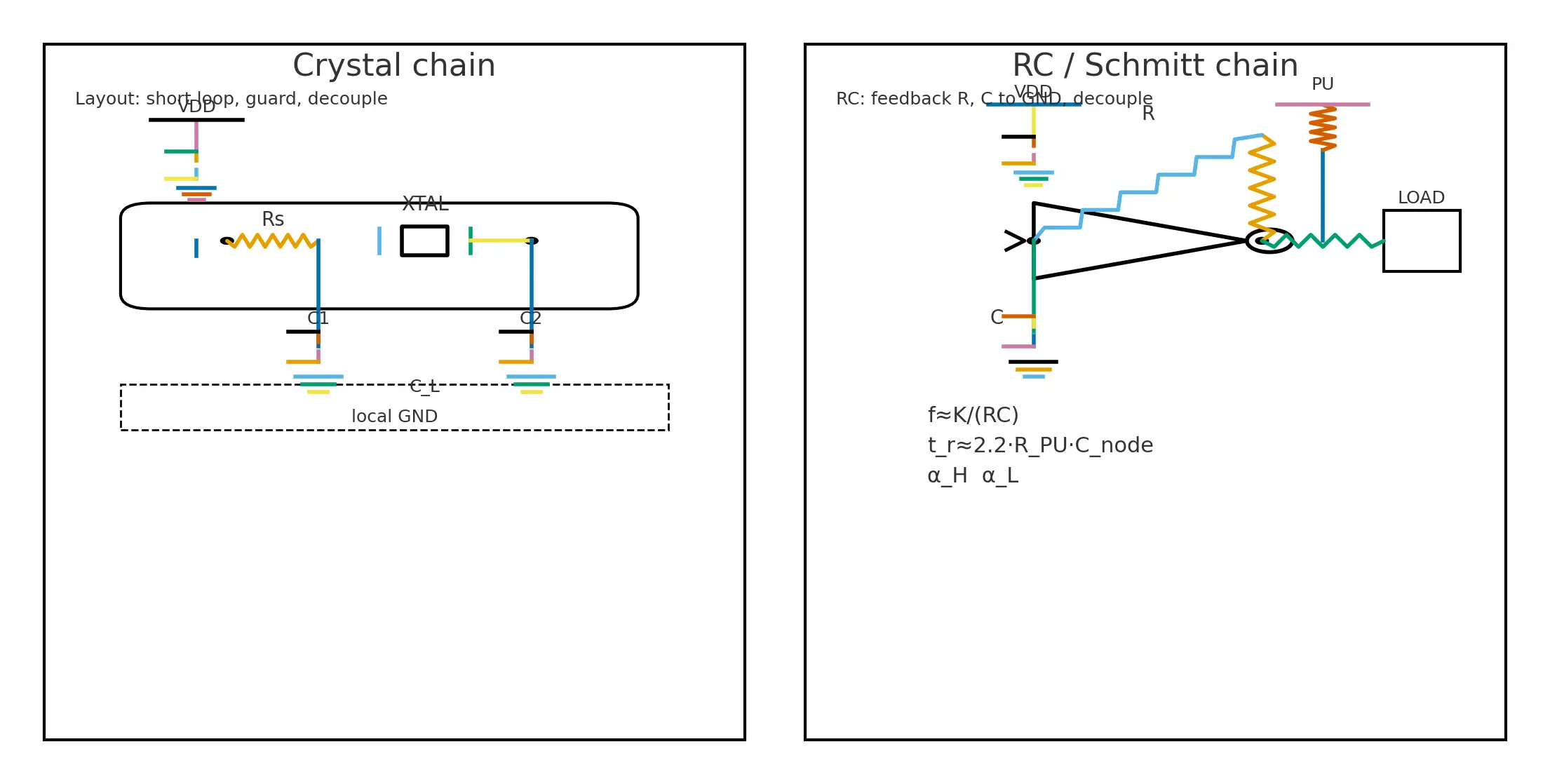

Wiring tips: crystal load-cap and grounding vs RC/Schmitt with series resistors, pull-ups, and decoupling. — Layout and power treatment dominate start-up margin, jitter, and drift.

Browse recommended parts in Brand & Part Picks, or Submit your BOM for a 48-hour review.

Brand & Part Picks

Pick the implementation path first—Crystal/MEMS, Clock-Generator/PLL, or RC/Relaxation—then narrow by supply voltage, stability/jitter, temperature range, and package. Cards below list representative series and quick specs (typical bands; always check the datasheet).

MEMS / Crystal Oscillators

SiTime — SiT8008 / SiT1602 / SiT82xx (MEMS XO/TCXO)

Vdd: 1.8–3.3 V (series-dependent)
Stability: ppm-class (programmable grades)
Jitter: low-ps bands (check DS)
Temp: commercial to industrial/automotive options
Pkg: tiny SMD, programmable frequency
Use: system clocks; robust to shock/vibration

Epson — SG/VG/VT families (XO/TCXO/OCXO)

Vdd: common rails (1.8/2.5/3.3 V options)
Stability: ppm to sub-ppm (TCXO/OCXO)
Outputs: CMOS or clipped-sine
Temp: wide temp grades available
Use: precision clocks, GNSS, comms

Abracon — AB/AST/ASD series (XO/TCXO/OCXO)

Vdd: 1.8–5.0 V (series-dependent)
Stability: ppm-class options
Temp: commercial/industrial/automotive
Pkg: broad SMD/SMT portfolio
Use: general-purpose timing, references

Microchip — DSC6/DSC1/DSC63xx (XO/TCXO/MEMS)

Vdd: 1.8/2.5/3.3 V variants
Jitter: low-jitter families available
Stability: ppm grades; MEMS or crystal inside
Use: drop-in clock sources with simple BOM

Clock Generator / PLL

Texas Instruments — LMK / CDCE

Series: LMK048xx (jitter cleaner/distribution), CDCE9xx (simple trees)
I/O: CMOS/LVDS/LVPECL options
Control: I²C/SPI programmable, fractional-N available (family-dep.)
Use: multi-clock trees, synthesis, jitter cleaning

Renesas (IDT) — 9xxx / VersaClock / 8Txx

Multi-output, divider/mux, spread-spectrum (family-dep.)
I/O: CMOS/LVDS/LVPECL
Use: flexible frequency plans, fan-out and synthesis

Analog Devices — ADF / HMC (PLL/VCO)

Microwave-capable families (device-dependent)
Lock-time/jitter trade via loop-bandwidth
Use: synthesized RF LOs with crystal reference

RC / Relaxation (Schmitt & 555)

SN74LVC1G14 — 1-gate Schmitt inverter

Vdd: 1.65–5.5 V (vendor-specific)
Inputs: many variants are 5 V-tolerant (check DS)
Pkg: SOT-23, SOT-353, XSON, etc.
Use: RC oscillators, debounce, edge cleaning

74HC14 / CD40106B — Hex Schmitt inverter

Vdd: HC ≈ 2–6 V; 4000B supports higher rails
Six channels per IC; ideal for multi-node RC oscillators
Use: debouncing farms, RC oscillators, simple clocks

NE555 / TLC555 — Timer (astable/monostable)

Vdd: NE555 ≈ 5 V class; CMOS TLC/LC low-power, wider rails
Outputs: push-pull (CMOS variants)
Use: beeps, PWM/LFO, one-shots; simple BOM

Use case	Pick	Why	Notes
ppm-class system clock	XO/TCXO (SiTime/Epson/Microchip)	Accuracy & low jitter	Select stability grade & temp range
Multiple related clocks	Clock-Gen/PLL (TI LMK / Renesas / ADI)	Programmable synthesis & fan-out	Inherits reference quality; plan loop BW
LED blink / beep / watchdog	74HC14 / SN74LVC1G14 / NE/TLC555	Fast, low BOM	Accept drift; choose C0G/NP0 where possible
Tunable RF LO	VCO + PLL (ADI/TI/Renesas)	Agile frequency, phase-noise control	Clean XO reference; isolated supplies

See also the Schmitt inverter short-list in Schmitt Trigger — 7-Brand IC Picks. Planned model pages: SN74LVC1G14, 74HC14, CD40106B, NE555, and selected SiTime series.

From drop-in oscillators to synthesized trees—pick by stability, jitter, outputs, and supply domain.

Submit your BOM

Mini-FAQ

Quick answers to the most asked questions about electronic oscillators. Each item links back to the in-depth section on this page.

What is an oscillator? How does it work? What does it do?

An oscillator is an active circuit that converts DC into a continuous AC waveform by closing a positive-feedback loop around a frequency-setting network. Noise kicks it on; the loop meets Barkhausen (gain ≥ 1, net phase = 0°) to sustain; amplitude limiting fixes steady state. See What Is an Oscillator and Working Principles.

What is a crystal oscillator? XO vs TCXO vs OCXO?

A crystal oscillator uses a quartz resonator (very high Q) to fix frequency with ppm-class stability. XO: basic crystal-controlled. TCXO: temperature-compensated for tighter ppm over temp. OCXO: oven-controlled for best stability and lowest drift (longer warm-up). See Harmonic path and Types & Signals.

What is an RC oscillator? Can an RC oscillator drive a circuit?

RC oscillators (Schmitt/555/phase-shift/Wien) set frequency with resistor-capacitor time constants. They typically need a buffer (logic gate/op-amp/emitter follower) for fan-out; driving loads directly shifts frequency and shape. See Relaxation path and Integration Cheatsheets.

What is a phase-shift oscillator? What is a Wien bridge oscillator?

A phase-shift oscillator uses three RC sections to provide 180° phase shift; with the amplifier’s 180° you reach 360°; loop-gain ≥ 29 is required. A Wien bridge oscillator uses a lead-lag RC network for low-distortion sine; amplitude control (lamp/JFET/AGC) prevents clipping. See Working Principles.

What is a voltage-controlled oscillator (VCO)?

A VCO’s frequency varies with a control voltage. Pair a VCO with a PLL to synthesize agile, low-jitter clocks/RF local oscillators from a clean crystal reference. See Application Playbook (RF/LO) and Brand & Part Picks.

What is a low-frequency oscillator (LFO)?

In audio/synthesis, an LFO is a slow oscillator (sub-audio to a few tens of Hz) that modulates pitch, amplitude, filters, or effects—often square/triangle from Schmitt + integrator, or clean sine from Wien. See Application Playbook (Audio & LFO).

What is the difference between an amplifier and an oscillator?

An amplifier requires an external input and provides gain. An oscillator self-generates a periodic output by closing a positive-feedback loop around a frequency-setting network. See Discrete vs IC — How to Choose.

Is a laser an oscillator?

Yes—an optical cavity oscillator (light amplification in a resonant cavity). This page focuses on electronic oscillators for timing, audio, and RF. See Working Principles.

Out of scope for this page

We intentionally exclude trading indicators (RSI, MACD, Stochastic, CCI, ADX, VWAP, etc.), Bitcoin/crypto RSI topics, and household AC/DC questions (phone chargers, TV, fan) that are unrelated to electronic oscillator design.

Submit Your BOM (48-hour turnaround)

Send your parts list and constraints, and within 48 hours we’ll return a focused pack: lead-time comparison, pin-to-pin alternatives, compliance (AEC-Q/Industrial), and optional sample-kit suggestions.

Lead-time comparison

Cross-brand availability with risk notes (NCNR, allocation, EOL flags) and suggested buffers by region.

Pin-to-pin alternatives

Same package/footprint first; key spec deltas highlighted (V_DD, jitter/ppm, output type, temp grade).

Compliance review

AEC-Q/Industrial options, RoHS/REACH statements, and temperature/derating guidance where applicable.

Sample-kit options

Early-bring-up kits (e.g., programmable MEMS frequencies, eval boards) plus MOQ/lead-time notes.

What to include in your BOM/request

Required fields

Use case / application context
Target frequency & stability (ppm/ppb), jitter budget (if any)
Supply rails & output type (CMOS / LVDS / LVPECL / clipped-sine)
Operating temperature range
Quantity, target lead-time, ship-to region

Optional constraints

Brand/package lock, height limits, pinout constraints
Load capacitance / drive level (crystal), fan-out needs
PLL/clock-tree plan (number of outputs, formats, frequencies)
EMI/PSRR concerns, isolation domains, power-up sequencing

Helpful attachments

BOM (.xlsx/.csv)
Schematics/netlist (PDF/Altium/KiCad)
Timing diagrams / clock-tree (PDF/PNG)
Compliance requirements (PDF)

Privacy & compliance. We use your data only to prepare quotes and technical suggestions. NDA available on request. We do not sell your information to third parties. Compliance support includes RoHS/REACH statements and AEC-Q/Industrial options. If your files are confidential, mark them clearly in filenames and subject lines.
