USB Host Controller IC: Architecture, Selection Guide, and System-Level Integration

Understanding USB Host Controller ICs (vs Device Controllers & HCI)

In embedded design, the term “USB Host Controller” is often used ambiguously, leading to confusion between three different but related concepts:

• USB Host Controller IC – the physical hardware chip that enables a system to act as a USB host.
• USB Device Controller – a chip or peripheral that allows a system to act as a USB peripheral (device).
• HCI (Host Controller Interface) – a software-level protocol interface between USB drivers and host hardware.

Why This Distinction Matters

When engineers search for a USB host controller, they may end up reading:

• Protocol standards like OHCI, EHCI, or xHCI
• Bluetooth HCI specifications
• Microcontroller datasheets that only support USB Device mode

But what they likely need is a real IC that enables the system to function as a USB host.

What is a USB Host Controller IC?

A USB Host Controller IC is a dedicated chip that:

• Initiates and manages communication with USB devices
• Handles enumeration, bandwidth allocation, and USB state machines
• Controls power and overcurrent protection on VBUS
• Connects to the MCU via SPI, UART, PCIe, or internal bus

In contrast to USB Device Controllers, USB Host ICs are active bus managers.

Where Does HCI Fit In?

The Host Controller Interface (HCI) refers to the logical interface between USB drivers and hardware. It's used in:

• Operating system-level USB driver stacks
• Bluetooth-over-USB configurations
• Generic USB controller abstractions

But in bare-metal or RTOS-based embedded systems, you need a hardware IC, not a protocol spec.

Common Mistakes to Avoid

Key Takeaway

A USB Host Controller IC is not a software interface—it is a physical chip that allows your MCU or SoC to act as the initiator in USB communication.

Still confused about how HCI fits into USB host architecture? Read our deep-dive on Host Controller Interface (HCI) vs USB Host Controller to clarify the differences.

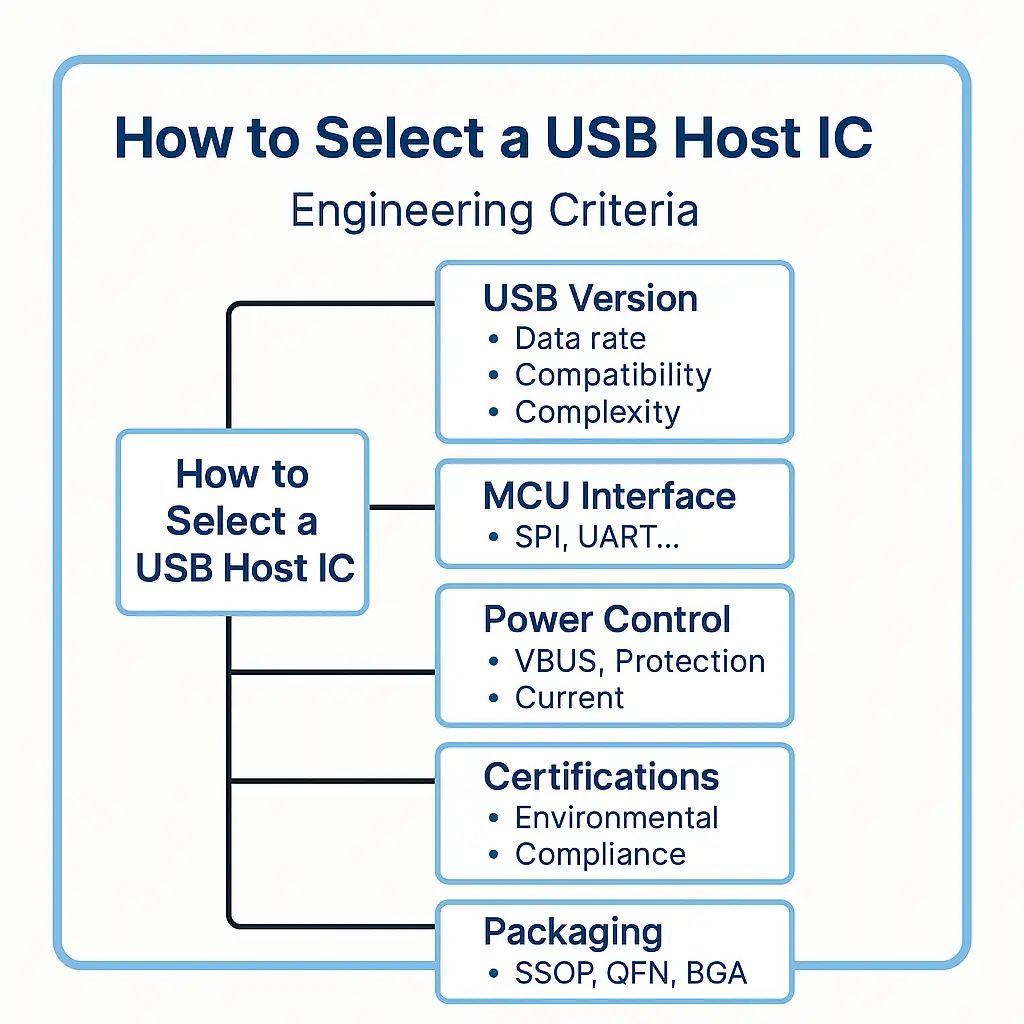

How to Select the Right USB Host IC: 6 Engineering Criteria

After understanding what a USB Host Controller IC is, the next step is choosing the right one. The best USB host IC for your design depends on multiple engineering constraints—not just compatibility, but power, form factor, integration level, and certification needs.

1. USB Version Support

The USB version supported by the controller determines:

• Maximum data rate
• Compatibility with legacy or high-speed devices
• Protocol complexity

Tip: For basic peripherals like keyboards or data loggers, USB 2.0 is often sufficient and easier to integrate.

2. Interface to the MCU / Host SoC

The interface determines hardware complexity and software stack:

3. Power Control & VBUS Management

Host ICs must manage USB VBUS (5V supply):

• VBUS enable/disable
• Overcurrent protection
• Inrush current limiting

Note: Power integrity is especially critical in automotive and industrial designs.

4. Host Mode Capability: Dedicated vs OTG

• Dedicated Host: always acts as host
• OTG: switches between host and device

Tip: OTG adds flexibility but increases design complexity.

5. Certification & Environmental Ratings

• Consumer: commercial-grade USB compliance
• Automotive: AEC-Q100, -40°C to +125°C
• Industrial: ESD, EMI tolerance, long-term supply

6. Packaging & PCB Constraints

Consider size, solderability, and heat dissipation:

• SSOP/SOP: easier prototyping
• QFN/LQFP: compact, cost-efficient
• BGA: best performance, harder layout

Tip: Differential pair routing is critical for USB reliability—plan your stackup early.

Checklist Before Comparing ICs

• ✔ What USB version is needed?
• ✔ Which interface suits your MCU?
• ✔ Does your application require OTG?
• ✔ What environmental/certification constraints exist?
• ✔ Budget and footprint constraints?

Top USB Host Controller ICs in the Market (2025 Updated)

After outlining the six key criteria for selecting a USB Host IC, it’s time to look at the real-world components currently dominating the market. This section maps mainstream, proven ICs across performance tiers, interface types, and brands—so you can compare and shortlist based on what fits your needs.

Quick Comparison Table (By Interface & Use Case)

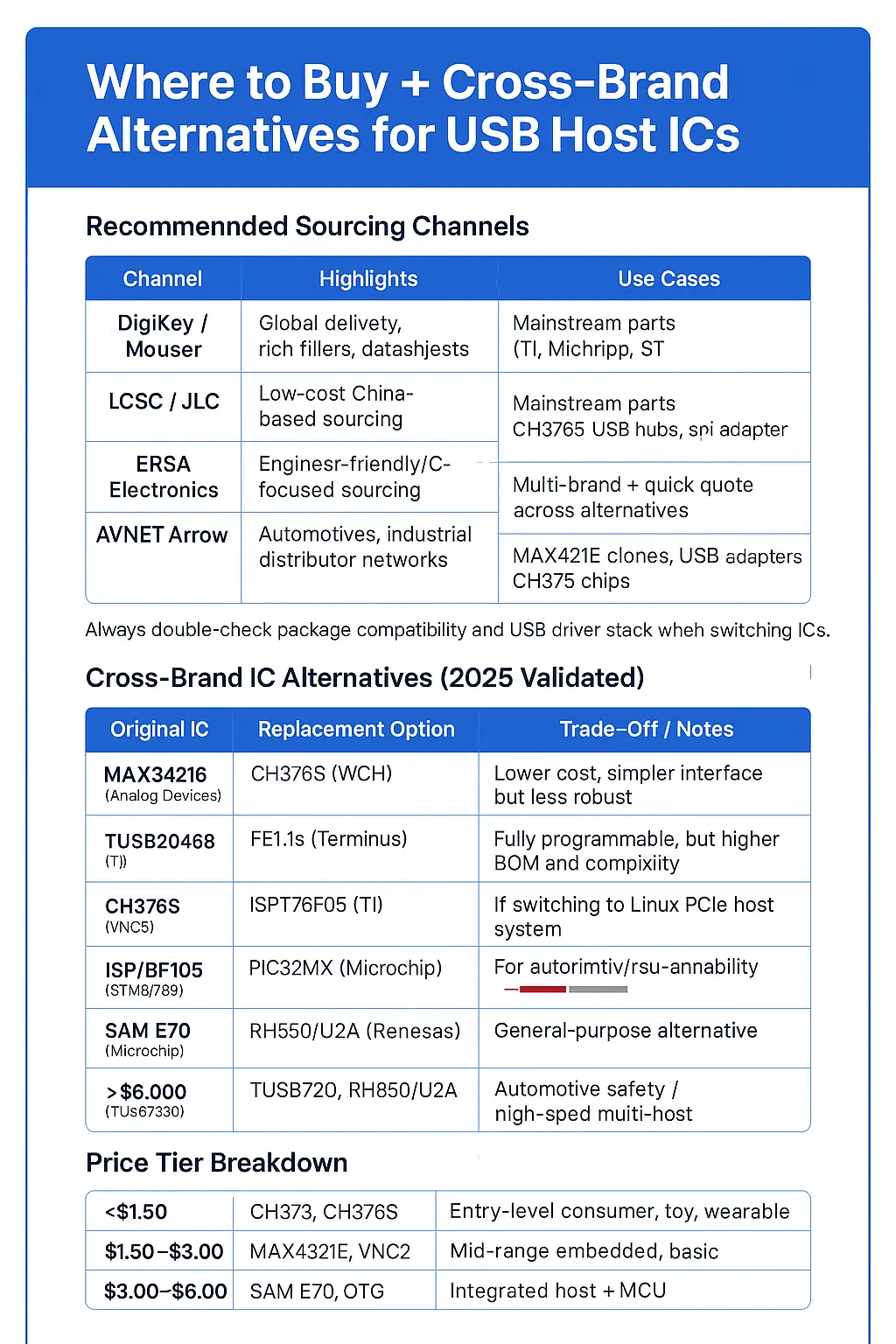

Brand-Focused Mapping: Who Offers What?

• TI – Texas Instruments: TUSB2046B (USB 2.0 Hub), TUSB1211 (USB PHY), TUSB7320 (USB 3.0 PCIe Host)
• NXP: LPC176x/546xx (MCU + Host), ISP1761 (PCI-like), S32K1xx/3xx (Automotive)
• Microchip: PIC32MX/PIC32MZ (MCUs), SAM E70/V71 (Cortex-M7 + HS USB Host), USB3740 (USB Hub)
• STMicroelectronics: STM32F105/STM32F407 (USB OTG/Host), STM32MP1 (Linux MPU + USB Host)
• Renesas: RH850/U2A (Automotive + Safety), RA4M3/RA6M4 (USB Host MCU)
• onsemi: FSUSB42 (USB switch/mux, used with host ICs)
• Melexis: ESD protection and signal conditioning ICs for USB ports

Grouped by Use Case

Key Takeaway

There is no single “best” USB Host IC — it depends on how you balance cost, interface, software support, and environmental requirements.

Integration Strategies Based on Use Case and Budget

Now that we’ve explored what’s available on the market, it’s time to match the right USB Host IC to your project’s specific conditions—based not just on specs, but on application type, budget, environmental requirements, and system architecture.

Below are actionable system integration strategies across four primary tiers, based on real-world engineering use cases:

1. Ultra-Low-Cost Integration (≤ $1.50 BOM)

Best for: consumer electronics, basic data loggers, low-speed USB input

2. Balanced-Cost Embedded Host Design (≤ $3.50 BOM)

Best for: medical devices, industrial control, mid-range data terminals

3. Automotive-Grade or Harsh Environment Integration

Best for: EV platforms, ADAS modules, black box loggers, wide-temp range systems

4. High-Performance / Multi-Channel USB Host Systems

Best for: embedded Linux systems, industrial routers, high-speed printing, smart edge hubs

Integration Decision Matrix

• Cost-sensitive + 8-bit MCU? → MAX3421E / CH376S
• Need 4-port hub? → TUSB2046B or USB3740
• Automotive-certified MCU? → S32K or RH850
• Industrial Linux router? → ISP1761 or STM32MP1

→ In the next chapter, we’ll walk through application-specific use cases like barcode scanning terminals, embedded printers, and automotive loggers—with working IC combinations and schematic roles.

Common Use Cases for USB Host ICs (Consumer, Industrial, Automotive)

This section maps real-world USB Host ICs into practical application scenarios. Each module outlines a typical system, suggested IC combination, technical highlights, and integration tips to help guide your design decision.

Summary

Each application class benefits from a different integration strategy:

• Consumer designs: Focus on simplicity and BOM cost
• Industrial systems: Emphasize port flexibility and robustness
• Automotive platforms: Require certified, dual-interface ICs
• Linux edge devices: Need bandwidth and host stack control
